Description

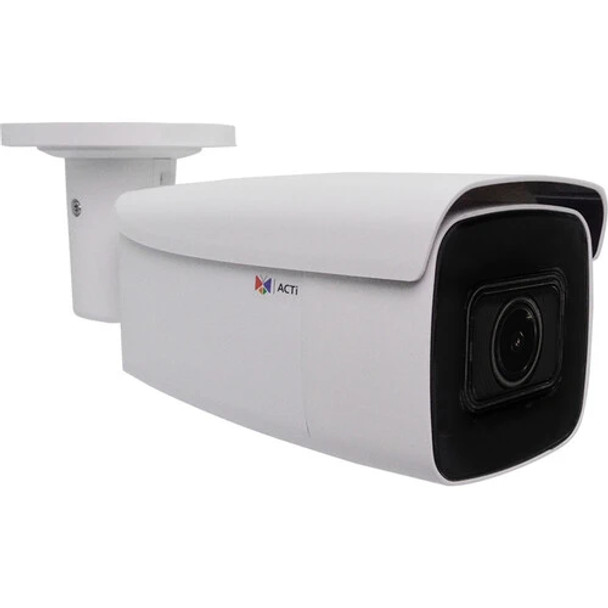

ACTi A423 6MP Outdoor Bullet IP Security Camera with 2.7-13.5mm Lens and Built-In IR
The ACTi A423 is a high-resolution 6MP outdoor bullet IP security camera designed for advanced surveillance applications. Equipped with a 5x optical zoom lens (2.7-13.5mm, F1.6), it provides flexible field-of-view adjustments to capture both wide-area coverage and detailed images. The built-in IR LEDs offer night vision capabilities up to 85 meters, ensuring reliable monitoring in complete darkness. With an Extreme Wide Dynamic Range (WDR) of 150 dB, the camera enhances visibility in challenging lighting conditions. Its deep-learning AI analytics support face, people, and vehicle detection for intelligent security automation. The rugged IP68 and IK10-rated metal casing ensures durability against extreme weather and physical impact. Supporting H.265, H.264, and MJPEG compression, the A423 maximizes storage and bandwidth efficiency.
Key Features:
- 6MP resolution; captures high-quality and detailed video footage.
- 30 fps at 3200 x 1800; ensures smooth and clear recording.
- 5x optical zoom lens (2.7-13.5mm, F1.6); provides adjustable field-of-view.
- Built-in IR with a range of up to 85 meters; enables night vision in complete darkness.
- Extreme Wide Dynamic Range (WDR) at 150 dB; enhances visibility in high-contrast lighting.
- AI-powered analytics; supports face detection, people detection, and vehicle detection.
- IP68-rated weatherproof housing; protects against dust, water, and extreme weather.
- IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports quad streaming with configurable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- PoE (IEEE802.3af) support; simplifies installation with power and data over a single cable.
- Operating temperature range of -40°C to 60°C (-40°F to 140°F); designed for extreme environments.
- Privacy masking with four configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Bullet
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
297.1 mm × 96.2 mm × 91.5 mm (11.7" × 3.8" × 3.6")
|
Environmental:
|
Outdoor
|
Iris:
|
Fixed Iris
|
Lens Size:
|
2.7~13.5mm
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
Protection Code:
|
IK10
IP68
|
Resolution:
|
6MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.4"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
WDR 150dB
|
