Description

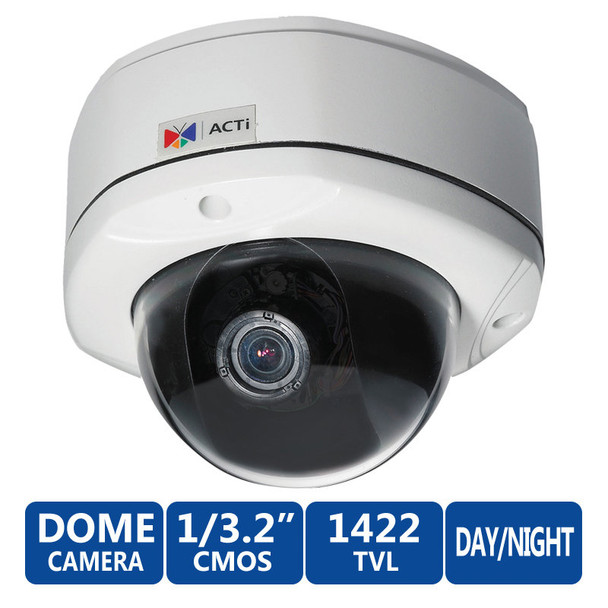

ACTi KCM-7311 Outdoor 4 Megapixel Network Dome Security Camera

The Acti KCM-7311 Outdoor 4 Megapixel Network Dome Security Camera is an outdoor surveillance camera with day and night functionality. It is incorporated with video motion detection feature that automatically triggers video recording, when a moving object enters the targeted area. It is an excellent way of monitoring your premises from a remote location. It can capture, compress and transmit real time video in excellent quality (8 FPS 4Megapixel, 2032 x 1920). With the innovative embedded Image Signal Processor (ISP), this camera responds to changing lighting condition with customized algorithm. This allows for clear image with very little noise at night.This device supports 3 compression formats, H.264, MPEG-4 and MJPEG.

The KCM-7311 reaches 30fps in 720p (1280 x 720) and VGA resolution (640 x 480). IP66 rated, the rugged vandal-proof construction gives protections against any impact. Special engineer polymer clear dome shell protects against brute force. Temperature control ensures cold-start capability for use in the worst of weathers. The advanced WDR helps to improve the dynamic range while keeping the true colors, sharp edges of objects, blur-free. With optional P Iris Lens, the camera automatically adjusts incoming light levels to achieve the best video performance. Wildly fluctuating outdoor lighting condition is no longer an issue with your video quality. The Acti KCM-7311 Outdoor 4 Megapixel Network Dome Security Camera is a cutting edge network video surveillance camera, and is your best choice to build an intelligent IP surveillance system.

Key Features of the ACTi KCM-7311 Outdoor 4 Megapixel Network Dome Security Camera

PoE: only a single cable is required for power and data transfer over the network
Progressive scan CMOS: captures still and moving images
WDR: captures images in varied light conditions
IP66 rated: protection against ingress of dust and powerful jets of water
DNR: clearer, sharper images
H.264/MJPEG Compression: reduces bandwidth
Video Motion Detection: triggers alarm when activity is detected

acti kcm-7311 outdoor 4 megapixel ip dome security camera

Features

Manufacturer:

ACTi

Product Type:

Cameras

Warranty:

3-year Manufacturer Warranty

Environmental:

Outdoor

Discontinued:

Security Camera Features

Technology:

Network (IP)

Camera Style:

Dome

Technical Specs

ACTi KCM-7311 Outdoor 4 Megapixel Network Dome Security Camera Specifications

Device Type: Fixed Dome Camera
Image Sensor: Progressive Scan CMOS
Sensor Size: 1/3.2 “ (4.5 x 3.4 mm)
Horizontal Resolution: 1561 TVL
Day / Night: Yes
Superior Low Light Sensitivity: Yes
Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
Color to B/W switch: ISP based switch, configurable
Mechanical IR Cut Filter: Yes
IR Sensitivity Range: 700 - 1100 nm
Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
Focal Length / Aperture: Fixed focal, f2.8 mm / F2.0
Iris: Fixed iris
Focus: Manual Focus
Mount Type: CS Mount
Horizontal Viewing Angle: 82.6°
Viewing Angle Adjustment: Pan: 0° - 350°; Tilt: 0° - 180°; Rotate: 0° - 350°
Compression: H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution (H.264, MJPEG): 8 fps at 2032 X 1920; 15 fps at 1920 X 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
Maximum Frame Rate vs. Resolution (MPEG-4 SP): 5 fps at 2032 X 1920; 11 fps at 1920 X 1080; 25 fps at 1280 x 720; 30 fps at 640 x 480
4 Cropped VGA Mode (All Compressions): 15 fps at 640 x 480 (VGA)
Bit Rate: 28 Kbps - 6 Mbps (per stream)
Bit Rate Mode: Constant, Variable
Image Enhancement: White balance: automatic, hold and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flickerless
Privacy Masks: 4 configurable regions
Text Overlay: User defined text on video
Image Orientation: Image flip and mirror
Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In: Terminal block
Audio-Out: Terminal block
Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
Alarm Trigger: Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input
Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
Digital Input: 2, terminal block
Digital Output :2, terminal block
Local Storage: MicroSDHC memory card slot (card not included)
Power Source: PoE Class 3 (IEEE802.3af)
Consumption: 10.08W
DC: 12V / 8.28W (adapter not included)
Weight: 1415 g (3.12 lb)
Dimensions (Ø x H): 151.69 mm x 114.9 mm (5.97" x 4.52")
Environmental Casing: Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 659.23 kgF (1453.35 lbF)
Mount Type: Surface, Pendant, Wall, Corner, Pole, Flush
Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity: 10% ~ 85% RH
Approvals: CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), IP66
Unified Solution: Fully compatible with ACTi software
ISV Integration: Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access: Browser Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
