ACTi Y31 2MP Outdoor Mini Bullet HD-TVI Security Camera with 2.8mm Lens and Built-In IR

ACTi Y31 2MP Outdoor Mini Bullet HD-TVI Security Camera with 2.8mm Lens and Built-In IR

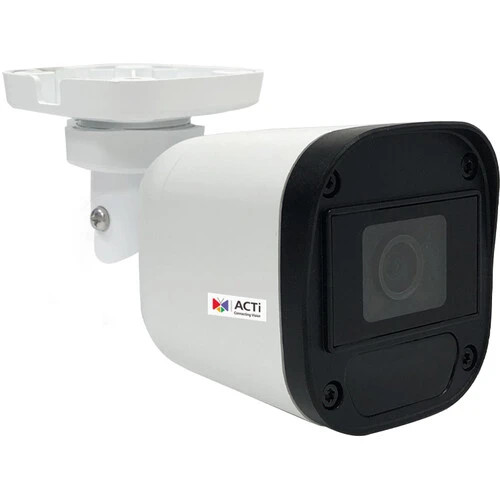

The ACTi Y31 is a high-resolution 2MP outdoor mini bullet HD-TVI security camera designed for analog surveillance systems requiring superior image quality and reliable performance. Equipped with a fixed 2.8mm lens (F2.0), it provides a 90.5° horizontal field of view, making it suitable for monitoring entrances, driveways, and perimeter areas. The built-in IR LEDs enable night vision up to 30 meters, ensuring clear imaging in complete darkness. With an Extreme Wide Dynamic Range (WDR) of 130 dB, the Y31 enhances visibility in high-contrast lighting conditions. This camera supports multiple analog video formats, including TVI, AHD, CVI, and CVBS, making it highly versatile for various DVR systems. It features a BNC connector for simple plug-and-play installation in traditional coaxial cable setups. The ACTi Y31 is an ideal solution for upgrading existing analog security systems with high-definition video while maintaining compatibility with traditional coaxial infrastructure.

Key Features:

• 2MP resolution; delivers high-definition video for analog surveillance systems.
• Supports TVI/AHD/CVI with up to 30 fps at 1920 x 1080 and CVBS for NTSC/PAL formats.
• 2.8mm fixed lens (F2.0); provides a wide 90.5° horizontal field of view.
• Built-in IR; enables night vision up to 30 meters.
• Extreme Wide Dynamic Range (WDR) at 130 dB; enhances visibility in high-contrast lighting.
• Compatible with HD-TVI, AHD, CVI, and CVBS formats; supports flexible analog integration.
• 1 x BNC analog video output; allows seamless connection to DVRs using coaxial cables.
• IP67-rated weatherproof housing; protects against dust, water, and extreme outdoor conditions.
• Lightweight and compact design; easy to install in pole and corner mount configurations.
• Operating temperature range of -30°C to 60°C (-22°F to 140°F); designed for reliable outdoor performance.
• Secure installation with surge protection up to 4KV; ensures stable operation in various environments.
