Description

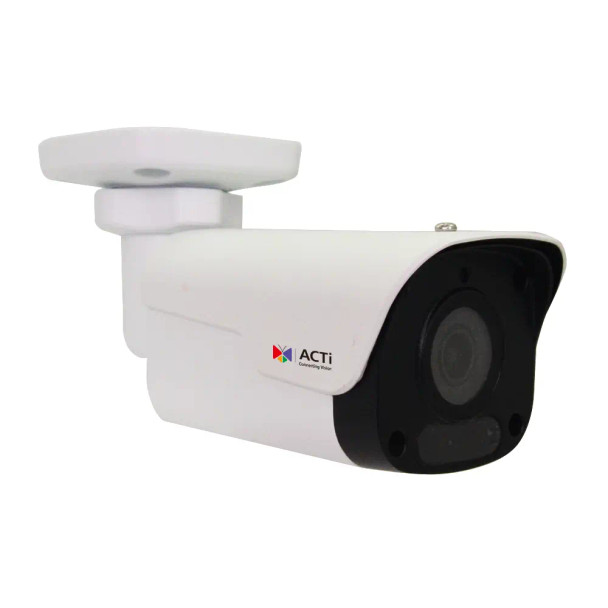

ACTi Z316-P1 2MP Outdoor Mini Bullet IP Security Camera with 4.0mm Lens and Built-In IR
The ACTi Z316-P1 is a 2MP outdoor mini bullet IP security camera designed for AI-driven analytics and low-light surveillance. Featuring a 4.0mm fixed lens, it provides an 81.1° horizontal and 47° vertical field of view, ensuring optimal coverage for various monitoring applications. The camera captures 1920 x 1080 resolution at 30fps and includes Superior WDR (120dB) to enhance image clarity in high-contrast lighting conditions. Built-in Adaptive IR illumination extends night vision up to 40 meters, making it suitable for 24/7 surveillance. AI-powered analytics include people and vehicle detection, object-based motion detection, and tampering alerts, improving proactive security monitoring. With an IP68 weatherproof and IK10 impact-resistant metal housing, the Z316-P1 is designed to withstand harsh environmental conditions, making it ideal for perimeter security, retail spaces, and transportation hubs requiring robust surveillance solutions.
Key Features:
- 2MP resolution; delivers 1920 x 1080 video at up to 30fps.
- 4.0mm fixed lens; provides an 81.1° horizontal field of view for clear coverage.
- Built-in Adaptive IR illumination; offers night vision up to 40 meters for effective low-light performance.
- Superior WDR (120dB); enhances image clarity in high-contrast lighting conditions.
- AI-powered analytics; supports people detection, vehicle detection, intrusion detection, and tampering alerts.
- Smart event detection; includes motion detection, object-based motion detection, and object line crossing detection.
- Digital noise reduction (2D + 3D DNR); improves image clarity by reducing noise.
- Privacy masking; allows configuration of up to four regions for sensitive information protection.
- IP68 weatherproof rating; provides protection against dust and water exposure.
- IK10 impact-resistant metal housing; ensures durability against vandalism and physical damage.
- Built-in microphone; enables real-time audio monitoring for enhanced security.
- PoE and 12VDC power options; offer flexible installation configurations.
- ONVIF compliant; ensures seamless integration with leading video management systems.
Downloads
Popular Search
Additional Information
|
Aperture:
|
F2.0
|
|
Camera Style:
|
Mini Bullet
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
62 mm × 63 mm × 166 mm (2.5” × 2.5” × 6.5”)
|
|
Durability:
|
Vandal Resistant
Weather Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
4mm
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Protection Code:
|
IK10
IP68
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
