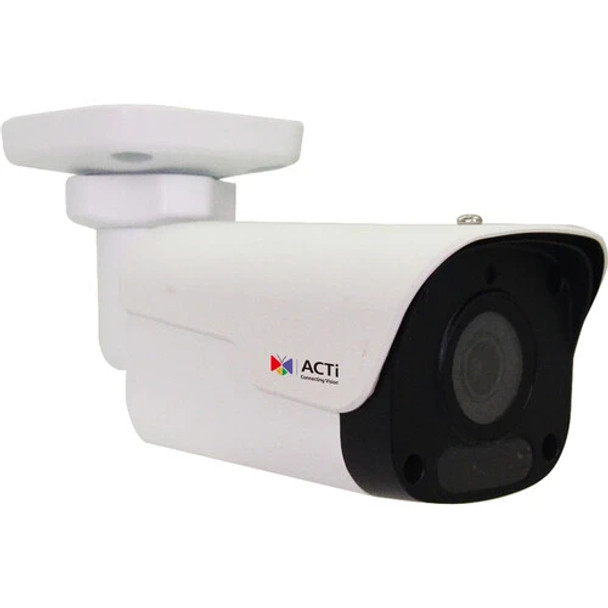

ACTi Z316 2MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR

Brand: ACTi
Part Number: Z316
Write a Review
  • ACTi Z316 2MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR - 4
  • ACTi Z316 2MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR - 2 Years Warranty
$270.00
$203.07
— You save $66.93

? Help me pick a security camera

Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Protection Code : IK10 IP68
  • Environmental : Outdoor
  • Aperture : F2.0

Description

ACTi Z316 2MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR

The ACTi Z316 is a 2MP outdoor mini bullet IP security camera designed for high-performance surveillance with superior low-light sensitivity and AI-driven analytics. Featuring a 2.8mm fixed lens, it provides a 108.6° horizontal and 62.7° vertical field of view, ensuring wide-area coverage. The camera captures 1920 x 1080 resolution at 30fps and supports Superior WDR (120dB), optimizing image clarity in challenging lighting conditions. Built-in Adaptive IR illumination extends night vision up to 40 meters, making it effective for 24/7 surveillance. The camera includes AI-powered analytics such as people and vehicle detection, intrusion detection, and object line crossing, enhancing real-time security monitoring. Its IP68 weatherproof and IK10 vandal-resistant housing ensures durability against extreme environmental conditions, making it ideal for perimeter security, critical infrastructure, and commercial applications requiring robust surveillance solutions.

Key Features:

  • 2MP resolution; delivers 1920 x 1080 video at up to 30fps.
  • 2.8mm fixed lens; provides a 108.6° horizontal field of view for wide coverage.
  • Built-in Adaptive IR illumination; offers night vision up to 40 meters for effective low-light surveillance.
  • Superior WDR (120dB); enhances image clarity in high-contrast lighting conditions.
  • AI-powered analytics; supports people detection, vehicle detection, intrusion detection, and object tracking.
  • Smart event detection; includes tampering detection, motion detection, and object line crossing detection.
  • Digital noise reduction (2D + 3D DNR); improves image clarity by reducing noise.
  • Privacy masking; allows configuration of up to four regions for sensitive information protection.
  • IP68 weatherproof rating; provides protection against dust and water exposure.
  • IK10 impact-resistant metal housing; ensures durability against vandalism and physical damage.
  • Built-in microphone; enables real-time audio monitoring for enhanced security.
  • PoE and 12VDC power options; offer flexible installation configurations.
  • ONVIF compliant; ensures seamless integration with leading video management systems.

Downloads

Additional Information

Aperture:
F2.0
Camera Style:
Mini Bullet
Compression:
H.264 H.265 MJPEG
Day/Night:
Dimensions:
62 mm × 63 mm × 166 mm (2.5” × 2.5” × 6.5”)
Durability:
Vandal Resistant Weather Resistant
Environmental:
Outdoor
Iris:
Fixed Iris
Lens Size:
2.8mm
Operating Humidity:
10% to 95% RH (non–condensing)
Operating Temperature:
-40 °C to 60 °C (-40 °F to 140 °F)
Power Supply:
PoE (IEEE 802.3af) 12 VDC
Protection Code:
IK10 IP68
Resolution:
2MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Technology:
Network (IP)
Wide Dynamic Range (WDR):
True WDR 120dB
