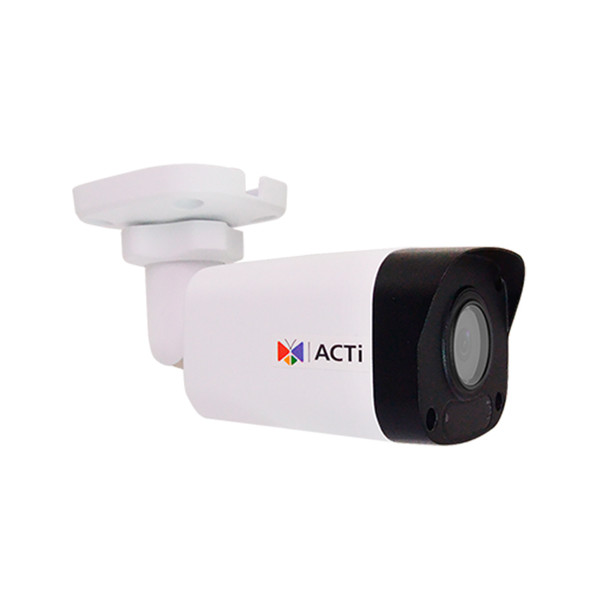

ACTi Z34 4MP Outdoor Mini Bullet IP Security Camera with 2.8mm Lens and Built-In IR
The ACTi Z34 is a 4MP outdoor mini bullet IP security camera designed for AI-driven surveillance with superior low-light sensitivity. Featuring a 2.8mm fixed lens, it provides a 99.8° horizontal and 56° vertical field of view, ensuring wide-area coverage. The camera captures 2688 x 1520 resolution at up to 20fps and supports Superior WDR (120dB) to enhance image clarity in high-contrast lighting conditions. Built-in Adaptive IR illumination extends night vision up to 40 meters, ensuring clear imaging in complete darkness. AI-powered analytics include people detection, vehicle detection, intrusion detection, and tampering alerts, making the Z34 an effective solution for proactive security monitoring. With an IP68-rated weatherproof and IK10-rated vandal-resistant metal housing, it is designed to withstand harsh environmental conditions, making it ideal for perimeter security, public spaces, and commercial applications requiring robust surveillance solutions.
Key Features:
- 4MP resolution; delivers 2688 x 1520 video at up to 20fps.
- 2.8mm fixed lens; provides a 99.8° horizontal field of view for wide coverage.
- Built-in Adaptive IR illumination; offers night vision up to 40 meters for effective low-light performance.
- Superior WDR (120dB); enhances image clarity in high-contrast lighting conditions.
- AI-powered analytics; supports people detection, vehicle detection, intrusion detection, and object tracking.
- Smart event detection; includes tampering detection, motion detection, and object line crossing detection.
- Digital noise reduction (2D + 3D DNR); improves image clarity by reducing noise.
- Privacy masking; allows configuration of up to four regions for sensitive information protection.
- IP68 weatherproof rating; provides protection against dust and water exposure.
- IK10 impact-resistant metal housing; ensures durability against vandalism and physical damage.
- PoE and 12VDC power options; offer flexible installation configurations.
- ONVIF compliant; ensures seamless integration with leading video management systems.
Downloads
Popular Search
Specifications
Device
| Product Type | Mini Bullet |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Effective Pixels | 2688(H) X 1520(V) (4.09 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.03 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| Electronic Shutter | 1-1/100000second (manual mode); 1-1/100000second (auto mode) |
| S/N Ratio | 52 dB |
Lens
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 104.4° |
| Vertical Viewing Angle | 54.4° |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2592 x 1520 20 fps at 1280 x 720 20 fps at 720 x 576 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | Backlight compensation |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 8 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection |
Network
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
Integration
| ONVIF Compliant | Yes, Profile S, Profile T |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.4 W (PoE) |
| Weight | 450g (0.99lb) |
| Dimensions | (W x H x D): 63.1mm x 62.5mm x 165mm (2.5" x 2.5" x 6.5") |
| Environmental Casing | Weatherproof (IP67) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Material | Camera with Integrated Bracket: Metal Sunshield: Plastic |
| Warranty | 2 Year(s) |
Additional Information
|
Aperture:
|
F2.0
|
|
Camera Style:
|
Mini Bullet
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
62.67 x 62.48 x 160.65 mm (2.5 x 2.5 x 6.3 in)
|
|
Durability:
|
Vandal Resistant
Weather Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP68
IK10
|
|
Resolution:
|
4MP
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
2-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
