Altronix AL300ULX - Single Output Power Supply

Write a Review
SKU:
AL300ULX
Maximum Purchase:
1000 units
  • Altronix AL300ULX - Single Output Power Supply
  • Altronix AL300ULX - Single Output Power Supply
$242.00
$148.54
— You save $93.46
Frequently bought together:

Description

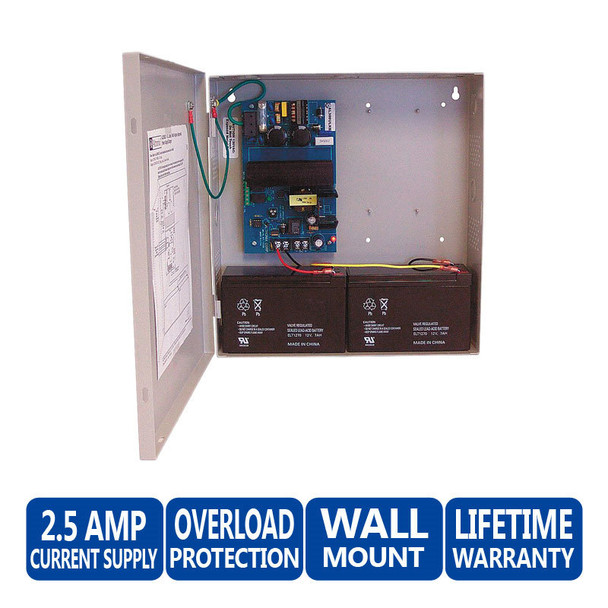

Altronix AL300ULX Single Output Power Supply/Charger
Altronix AL300ULX Single Output Power Supply/Charger converts an 115VAC/60Hz input into a single 12V DC or 24V DC selectable output. The output provides for a total supply current of 2.5 amp, and is filtered and electronically regulated. A built-in charger for sealed lead acid or gel type batteries ensures that you have backup DC power supply if the AC fails. The wall mount enclosure makes it ideal for indoor use.

  • 115V AC, 60Hz, 3.5 amp input
  • amp/250V input fuse rating
  • 12V DC or 24V DC selectable output
  • 2.5 amp total supply current
  • Filtered, electronically regulated output
  • Short circuit and thermal overload protection
  • Built-in charger for sealed lead acid or gel type batteries
  • Automatic switch over to stand-by battery once AC fails
  • 0.7 amp maximum charge current
  • AC input, DC output and battery LED indicators
  • AC fail, low battery, and battery presence supervision
  • 0° C to 49° C operating temperature
  • 12VDC: 14.71 - 16.63 BTU/Hr
  • 24VDC: 29.43 - 32.41 BTU/Hr
  • 402.5VA system AC input VA requirement
  • Lifetime Warranty
  • Wall mount enclosure for indoor use
  • Can accommodate up to two 12V DC/7AH batteries
  • 13.5"H x 13"W x 3.25"D
  • Approx. 8.3 Lbs. (3.76 kg)
