Altronix ALTV244UL 4 Fused Outputs Analog Power Supply - 24VAC @ 3.5A

Brand:
Part Number: ALTV244UL
Write a Review
  • Altronix ALTV244UL 4 Fused Outputs Analog Power Supply - 24VAC @ 3.5A
  • Altronix ALTV244UL 4 Fused Outputs Analog Power Supply - 24VAC @ 3.5A
$107.99
OR
Technical Support Technical Support

Description

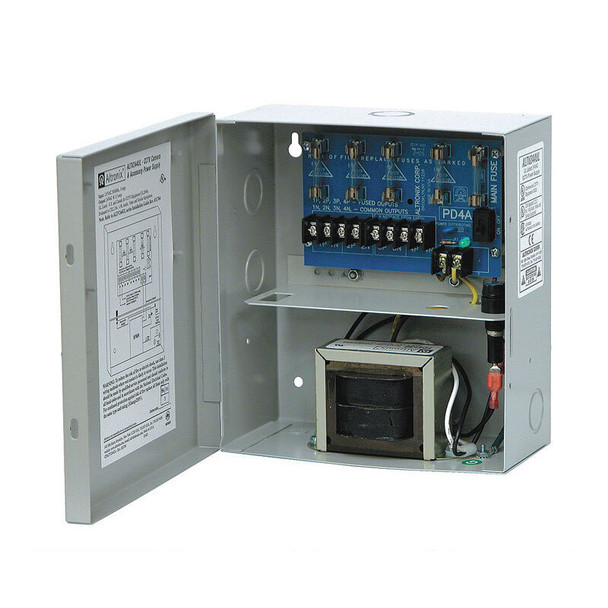

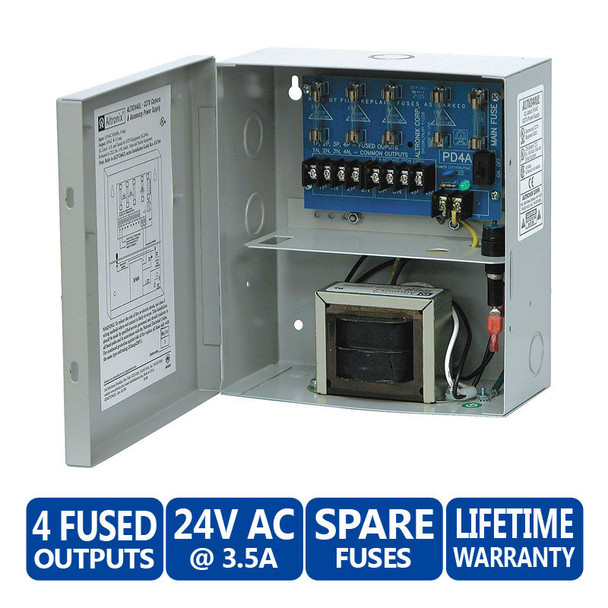

Altronix ALTV244UL Proprietary Power Supply

By channeling a 24VAC or 28VAC output, the Altronix ALTV244UL Proprietary Power Supply powers CCTV cameras, heaters and other video accessories. The four fuse-protected outputs aid in ensuring power supply at all times. A wall mount enclosure for indoor use provides protection. With spare fuses, and a lifetime warranty in tow, this power supply keeps going strong.

Key Features:

  • 115VAC, 50/60Hz, 0.9 amp Input
  • 4 fuse-protected outputs
  • 24VAC @ 3.5 amp (85VA) supply current (0.875 amp per device, 3.5 amp max.) or 28VAC @ 3 amp (85VA) supply current (0.75 amp per device, 3.5 amp max.)
  • Outputs are rated @ 3.5 amp
  • Surge suppression
  • 0° C to 49° C ambient temperature
  • 42.99BTU/Hr
  • System AC input VA requirement @ 103.5VA
  • Secondary fuse rated @ 5 amp/250V
  • AC power LED
  • Power ON/OFF switch
  • Spare fuses provided
  • Lifetime Warranty
  • Wall-mount enclosure for indoor use
  • 8.5"H x 7.5"W x 3.5"D
  • Approx. 6.4 Lbs.
View AllClose

Additional Information

Accessory Type:
Power Supply
