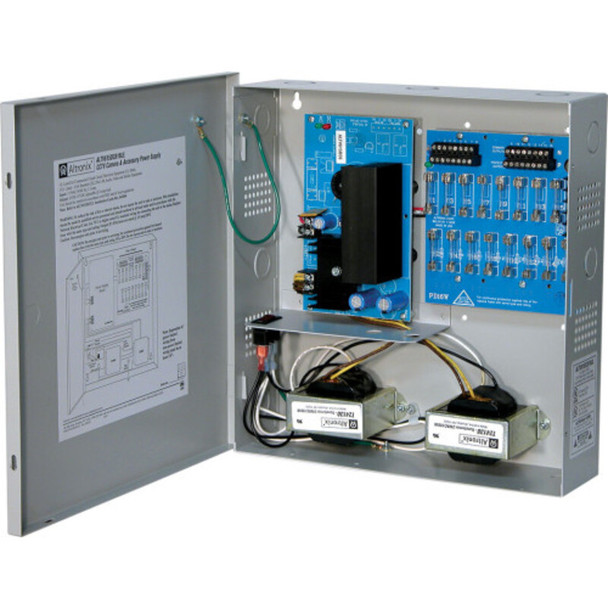

Altronix ALTV615DC616220 CCTV Power Supply - 16 Fused Outputs

Altronix ALTV615DC616220 CCTV Power Supply - 16 Fused Outputs

ALTV615DC616220 provides 6VDC to 15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters, and other video accessories.

Key Features:

• Input

  • Input 220VAC (working range 198VAC 256VAC), 50/60 Hz, 1A.

• Output

  • Sixteen (16) fuse protected outputs.
  • 6VDC to 15VDC field adjustable.
  • 6A total continuous supply current (0.375A per device, 3.5A max.).
  • Output fuses are rated @ 3.5A/250VAC.
  • Filtered and electronically regulated outputs.

• Temperature

  • Operating 0 to 49° C (32 to 120° F )
  • Storage - 20 to 70° C ( - 4 to 158° F)
  • Relative Humidity 85% +/- 5%
  • BTU/Hr. (approx.): 18-46 BTU/Hr.
  • System AC input VA requirement: 220VA.

• Features

  • AC input and DC output LED indicators.
  • Illuminated power disconnect circuit breaker with manual reset.
  • Spare fuse(s) provided.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
