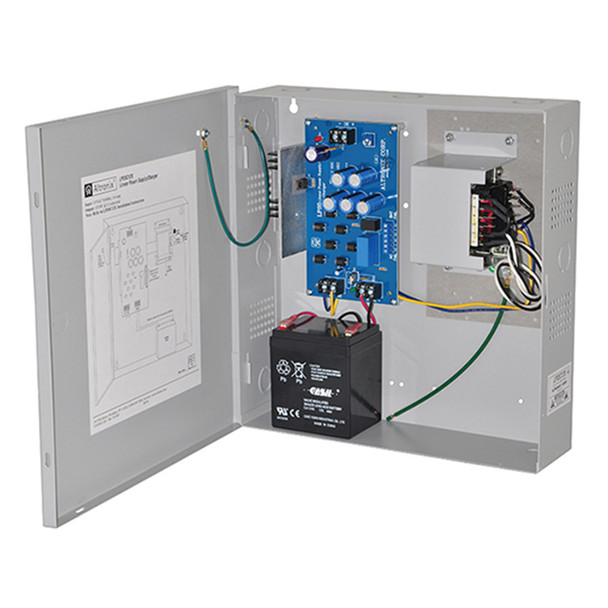

Altronix LPS5C12X Linear Power Supply/Charger

Altronix LPS5C12X Linear Power Supply/Charger

Altronix LPS5C12X linear power supply/charger converts a 115VAC 50/60Hz input to a 12VDC, 3.5A continuous supply current. The output stays regulated until the battery discharges to 25% capacity.

Key Features Of Altronix LPS5C12X

• Input

  • 115VAC 50/60Hz rated @ 1.6A.

• Output

  • 12VDC output.
  • 3.5A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery

  • Battery leads included.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
  • PTC battery protection.

• Visual Indicators

  • AC/DC power LED indicator.

• Supervision

  • Low battery and AC fail supervision (dry relay outputs 1A @ 28VDC).

• Electrical

  • Temperature:

    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 22 BTU/Hr.
