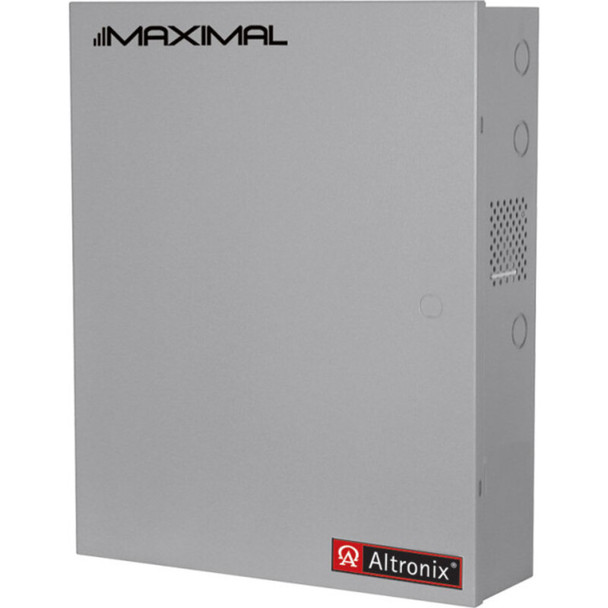

Altronix Maximal75DV Access Power Controller with Power Supply/Chargers - 16 PTC Class 2 Relay Outputs

Altronix Maximal75DV Access Power Controller with Power Supply/Chargers - 16 PTC Class 2 Relay Outputs

Maximal 75DV distributes and switches power to access control systems and accessories. Unit converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) independently controlled 12VDC and 24VDC PTC protected outputs. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Key Features:

• Sixteen (16) independently controlled outputs.
• Sixteen (16) auxiliary power outputs (unswitched).
• Output fuses are rated @ 2.5A.
• Filtered and electronically regulated outputs
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs.
• Alarm output relay indicates that FACP input is triggered.
• Built-in charger for sealed lead acid or gel type batteries.
• Instantaneous transfer to stand-by batteries.
• CE Approved.
• Lifetime Warranty / Made in the U.S.A.
