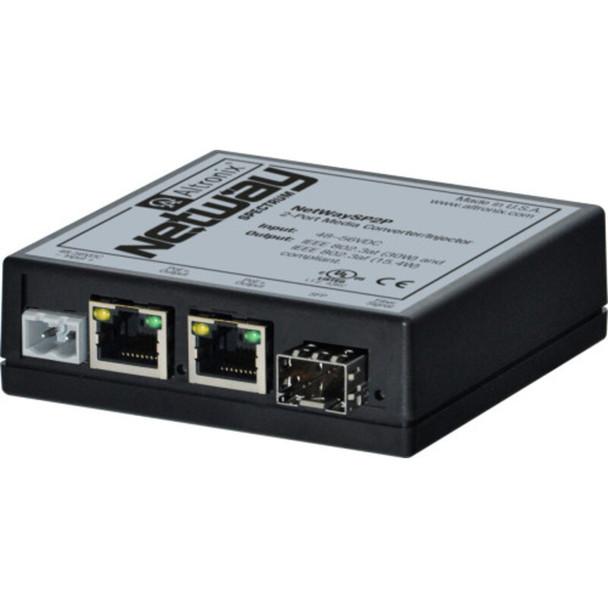

Altronix NetWaySP2P 2-Port Powered Media Converter/Injector

Altronix NetWaySP2P 2-Port Powered Media Converter/Injector

Altronix NetWaySP2P media converter/injector converts a single Fiber (1000Base-X/SX/LX) into two (2) Ethernet ports (10/100/1000 Mbps) and provides PoE/PoE+

Key Features:

• Input

  • 48-56VDC @ 1.2A (60W).

• Fiber Ports

  • One (1) 1Gb SFP port.

• Output Power

  • Two (2) PoE / PoE+ ports, rated up to 30W max.
  • IEEE 802.3af and IEEE 802.3at compliant.

• Ethernet

  • IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
  • Wire type: 4-pair CAT5e and higher.
  • Connectivity: RJ45, auto-crossover
  • Speed: 10/100/1000 Mbps.
  • Distance: up to 100m.

• LED Indicators

  • Yellow and Green LEDs (RJ45 jacks): IP Link status, 10/100/1000 Base-T/active.
  • Green PoE LEDs: Indicate PoE present.
  • Green SFP (Fiber) LED: Indicates SFP connection.

• Features

  • Auto detection and protection of legacy non-PoE cameras/devices.
  • Compact insulated housing.

• Temperature

  • Operating 48-56VDC @ 30W: -40ºC to 70ºC ( -40ºF to 158ºF).
  • Storage - 40ºC to 75ºC ( - 40º to 167ºF).
  • Relative Humidity 85% +/- 5%.

• Operating Altitude

  • - 304.8 to 2,000m.
