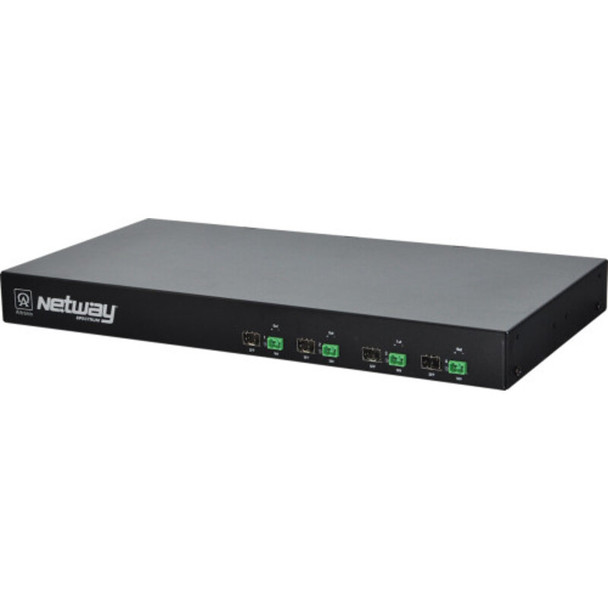

Altronix NetWaySP4 Fiber Optic Transceiver with optional PoE power

Altronix NetWaySP4 Fiber Optic Transceiver with optional PoE power

Altronix NetWaySP4 Fiber Optic Transceiver with optional PoE power provides up to four (4) 1Gb SFP ports and four (4) ports for up to 120W per port to be transmitted over composite fiber (powered) cable (fiber + copper combined) to NetWay Spectrum PoE+ Hardened Switches. NetWaySP4 can be used for standard fiber cable applications as well.

Key Features:

• Input

  • Voltage Input option 1: 48-56V: UL Listed ITE power supply, e.g. VertiLine563 (2 x 56V / 150W ports).
  • Input option 2: PoE+ (30W) or Hi-PoE (60W).

• Output

  • Maximum Power Up to 120W max power per port(external power supply required).
  • 30W per port with PoE+ input (midspan) or 60W (Hi-PoE).
  • Outputs are Class 2 power-limited when powered by PoE, PoE+, Hi-PoE unit or UL Listed power-limited supply.

• Fiber Ports

  • Four (4) 1Gb SFP ports.

• Temperature

  • Operating (120W): - 40° C to 50° C ( - 40° F to 122° F).
  • Storage: - 40° C to 85° C ( - 40° F to 185° F).
  • Relative Humidity: 85% +/- 5%.
  • Operating Altitude: - 304.8 to 2,000m ( - 1,000 to 6,561.679ft.).
