Altronix NetWaySP4B Dual 1G Fiber SFP - 4x 10/100/1000 PoE/PoE+

Altronix NetWaySP4B Dual 1G Fiber SFP - 4x 10/100/1000 PoE/PoE+

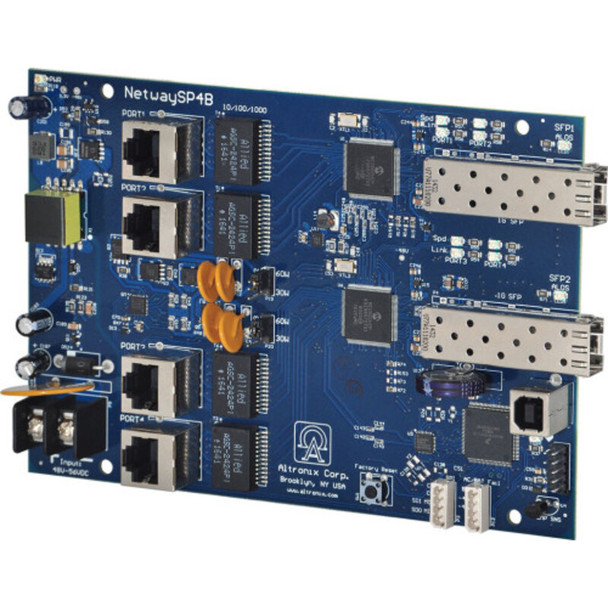

Altronix NetWaySP4B PoE+ Switch board provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.

Key Features:

• Input

  • 48-55V UL Listed ITE power supply (up to 120W)

• Power Output

  • Four (4) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
  • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
  • 120W total power.
  • Integral surge protection.

• Fiber Port

  • Two (2) Gigabit SFP ports.
  • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

• Ethernet Ports

  • Four (4) 10/100/1000 Mbps ports.
  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair CAT5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• LEDs

  • Individual PoE On LEDs for each port.
  • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • ALOS LED indicates fiber connection for SFP port.
  • Heartbeat LED indicates proper operation of the unit.

• LINQ Technology

  • Remote network management allows for camera/device reset and monitoring.
  • Provides local and/or remote access to critical information via LAN/WAN.
  • Email and Windows Dashboard Alert notifications report real-time diagnostics.
  • Event log tracks history.

• Temperature

  • Operating:

    • 60W: - 40° C to 75° C ( - 40° F to 167° F).
    • 75W: - 40° C to 70° C ( - 40° F to 158° F).
    • 100W: - 40° C to 55° C ( - 40° F to 131° F).
    • 120W: - 40° C to 45° C ( - 40° F to 113° F).
  • Storage: - 40° C to 85° C ( - 40° F to 185° F).
  • Relative Humidity: 85% +/- 5%

• Operating Altitude

  • - 304.8 to 2,000m.
