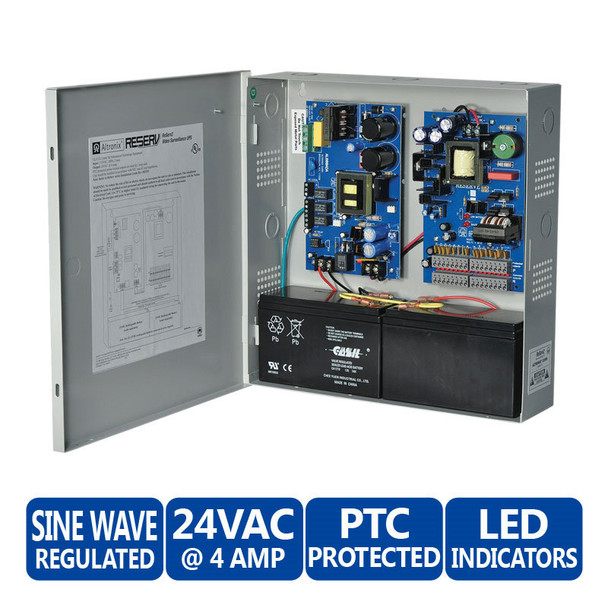

Altronix RESERV2 Sixteen (16) true sine wave regulated 24VAC rated @ 4 amp total

Altronix RESERV2 Video Surveillance UPS
Keep a watchful eye always with the help of Altronix RESERV2 Video Surveillance UPS. This UPS provides power for 24VAC cameras during normal, as well as power outage conditions. The AC outputs are true sine wave regulated, and make it the state of the art technology. This device also includes a lifetime warranty.

Key Features of& Altronix RESERV2 Video Surveillance UPS

• 115VAC60 Hz, 3.5 amps input
• 16 individually PTC protected outputs
• Total supply current:
  • 24VAC @ 4 amp (0.25 amp per device, 1 amp max.)& (Amb. Temp. -33° - 30° C)
  • 24VAC@3.5 amp (0.21 amp per device, 1 amp max.)& (Amb. Temp. -33° - 42° C)
• PTC protected power-limited outputs rated @ 1 amp
• Built-in charger for sealed lead acid or gel type batteries
• Automatic switchover to stand-by battery when AC fails
• Stand-by Batteries 4 amp (100VA) load at 24VAC max
• Two (2) 12VDC/7AH 45 minutes
• Two (2) 12VDC/12AH 90 minutes
• AC fail supervision (form "C" contacts)
• Low battery supervision (form "C" contacts)
• 0° C to 49° C ambient operating temperature
• 36BTU/Hr
• 402.5VA System AC input VA requirement
• NEMA1 enclosure
• 13.5"H x 13"W x 3.25"D enclosure dimensions
• Enclosure accommodates up to two (2) 12VDC/7AH batteries
• Approx.10.36 Lbs. (4.7 kg.)
• AC/DC power LED indicators
• Sixteen (16) power output LED indicators
• Low voltage input and Shutdown LED indicators
• True sine wave regulated AC outputs
• Audible alarm provides notification of UPS trouble conditions
• Unit maintains camera synchronization
• Ease of installation&
• Lifetime Warranty
• 1/2" and 3/4" combination knockouts
