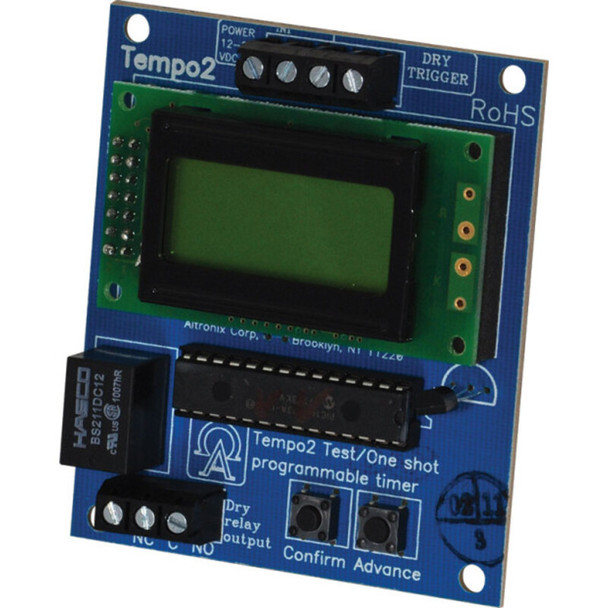

Altronix Tempo2 Timer - Universal 2 Stage

Altronix Tempo2 Timer - Universal 2 Stage

Tempo2 is a universal two stage timer for applications that require timed operations. A delayed egress feature will trigger a 1 to 60 second door release. Applications include daily/weekly test mode, one shot, door prop alarm, timed door annunciate, cut-off timer, alarm swinger eliminator, etc. Digital display facilitates ease of programming and real time information.

Key Features:

• Input

  • 12 to 24 volts AC or DC operation

• Relay

  • Triggers via dry contact.
  • Dry form "C" contacts are rated @ 2A/120VAC/28VDC.
  • Current draw: stand-by 15mA, relay energized 30mA.
  • Simple programming. One-Shot Features (trigger activated):
  • Programmable relay activation at the start or end of the timing cycle.

  • a) Delayed Pulse Mode:

    • 1 to 60 sec. programmable pulse at the end of timing cycle.

  • b) Delay Mode:

    • Relay can be programmed to energize or de-energize during timing cycle (Digitally adjust from 1 sec. -24hours).

• Features

  • EE Prom memory protects against loss of programming due to power failure.

• Visual Indicators

  • LCD displays real time countdown information.

• Temperature

  • Operating -20ºC to 49ºC ( -4ºF to 120ºF).
  • Storage -25ºC to 70ºC ( -13ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
