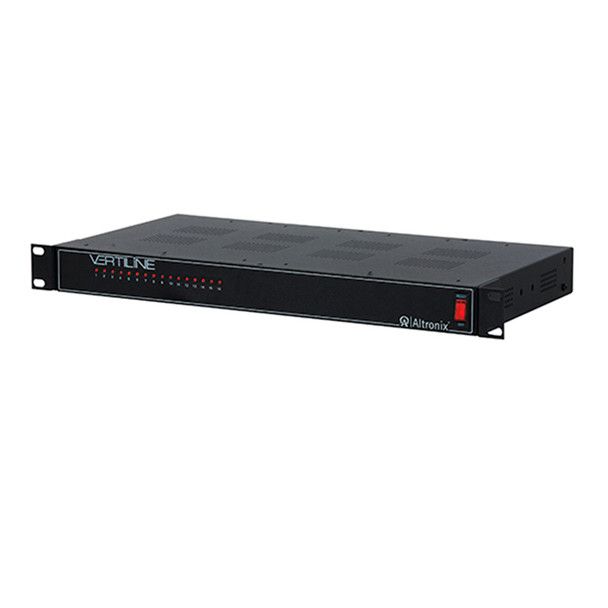

Altronix VERTILNE33D 16 PTC Outputs CCTV Power Supply

Altronix VERTILNE33D 16 PTC Outputs CCTV Power Supply

Vertiline33TD Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 24VDC and eight (8) outputs configurations.

Key features of Altronix VERTILNE33D

• Input

  • 115VAC 60 Hz, 3A input.

• Output

  • 12VDC outputs rated @ 16A total current max. (1.0A per device, 2.5A max.).
  • Sixteen (16) PTC protected power outputs.
  • Filtered and electronically regulated.

• Features

  • Sixteen (16) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • IEC 320 - 3-wire grounded line cord (detachable).
  • Removable terminal blocks with locking screw flange.

• Temperature

  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 98 BTU/Hr.
  • System AC input VA requirement: 345VA.
