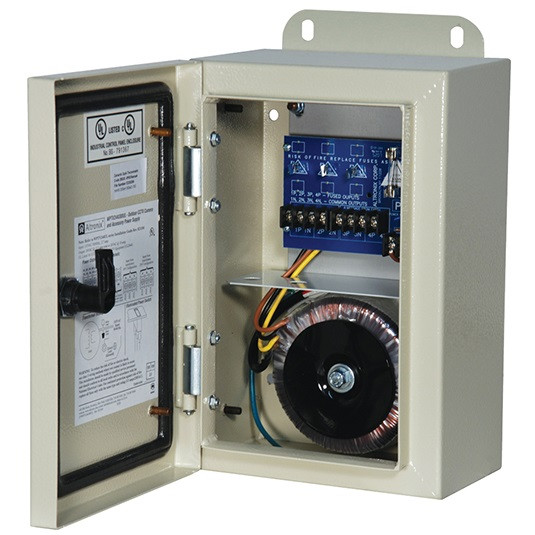

Altronix WPTV244300UL 4 Output Outdoor CCTV Power Supply

Altronix WPTV244300UL 4 Output Outdoor CCTV Power Supply

CCTV Power Supply, Outdoor, 1 Fused and 3 PTC Outputs, 24/28VAC @ 12.5A, 115VAC, WP1 Enclosure.

Altronix WPTV244300UL provides power via four (4) protected outputs for CCTV cameras, heaters, and other video accessories.

Key Features of Altronix WPTV244300UL

• Input

  • 115VAC, 50/60Hz, 2.7A.

• Output

  • Four (4) protected outputs:

    • One (1) fuse protected non power-limited output rated at 15A/32VA.
    • Three (3) Class 2 Rated PTC protected power-limited outputs rated @ 2.5A (auto-resettable).
  • 24VAC @ 12.5A (300VA) supply current or 28VAC @ 10A (280VA) supply current
  • Surge suppression.

• Features

  • AC power LED.
  • Illuminated power disconnect circuit breaker with manual reset.
  • Spare fuses provided.
  • NEMA 4 Rated enclosure for outdoor use.

• Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

    • BTU/Hr. (approx.):

      • 24VAC: 114 BTU/Hr.
      • 28VAC: 106 BTU/Hr.
  • System AC input VA requirement: 310.5VA.
