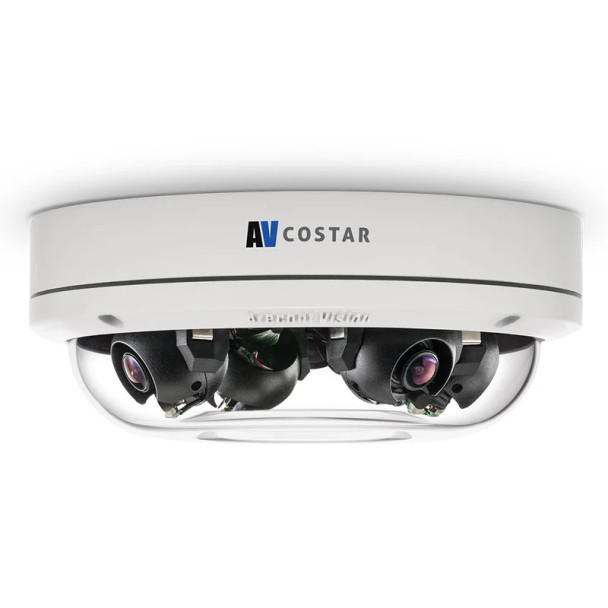

Arecont Vision AV20576DN-28 4x 5MP Outdoor Multi-sensor IP Security Camera

Part Number: AV20576DN-28
Write a Review
$1,699.00

Help me pick a security camera

Free shipping over $300 Free Shipping
Fast Shipping Fast Shipping
Technical Support Technical Support
  • Compression : H.265, H.264, JPEG,
  • Field of View (Horizontal) : 98°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Max. Storage Capacity : 1 TB Storage Capacity
  • Protection Code : IP66 IK10
  • Color : White
  • Material : Aluminum Poly-carbonate
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
  • Aperture : F1.6

Description

Arecont Vision AV20576DN-28 4x 5MP Outdoor Multi-sensor IP Security Camera

The ConteraIP Omni LX multi-sensor, multi-megapixel camera was built to withstand evolving customer change-requirements. The unique, future-proof platform of the ConteraIP Omni LX provides organizations of all sizes the flexibility to deploy a security system that truly matches their video surveillance needs now; and again if requirements change in the future. With its ground-breaking flexibility such as the ability to easily move each of the four sensors around the magnetic 70+ placement-point Omni track, the 3-axis gimbals for an increased range of motion when positioning the sensors, and the ability to interchange the remote focus modular lenses for a customized field of view, the ConteraIP Omni LX provides customers with the confidence in a future-proof investment. The ConteraIP Omni LX changes when you do.

Key Features:

  • 20MP Resolution
  • 4 x 2.8mm Lenses
  • Remote Focus
  • 3-Axis Gimbal – Up to 4 Individual Camera Gimbals can be Independently Placed in Any Orientation Around a 360° Track with Extra Positions for Looking Straight Down
  • Multiple Lens Options in a Single Camera Housing
  • SNAPstream+™ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
  • NightView™ for Strong Low Light Performance
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • On-Screen Display (OSD)
  • WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
  • Triple Encoder: H.265/H.264/MJPEG
  • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
  • All-in-One H.265/H.264 Total PoE+ Solution PoE+ and Auxiliary Power: 12V-48VDC/24VAC
  • MicroSDXC Card Slot for Onboard Storage up to 1TB
  • Ultra-Discrete, Low-Profile Housing
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  • NDAA Compliant

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm Input:
1 Channel
Alarm Output:
1 Channel
Aperture:
F1.6
Audio Capability:
Two-Way Audio
Audio Compression:
G.711
Camera Style:
Dome
Certifications:
FCC RoHS REACH WEEE CE
Color:
White
Compatible Integration (API):
ONVIF Profile G ONVIF Profile S ONVIF Profile T
Compression:
H.265 H.264 JPEG
Connection Type:
Wired
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
98
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Material:
Aluminum Poly-carbonate
Max Power Consumption:
14 Watts
Max. Storage Capacity:
1 TB
Minimum Illumination (B/W):
0.15 Lux
Minimum Illumination (Color):
0.15 Lux
NDAA Compliance:
NDAA Compliant
Network Interface:
1x RJ-45 10/100/1000 Mbps
Operating Humidity:
0% to 90% (non-condensing)
Operating Temperature:
-40 °C to 50 °C (-40 °F to 122 °F)
Power Supply:
PoE+ (IEEE802.3at Class 4)
Product Series:
Arecont Vision ConteraIP Omni LX
Protection Code:
IP66 IK10
Remote Users:
Up to 10
Resolution:
5MP (3K)
SD Card Support:
SD Card Supported
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Special Technologies:
Arecont Vision SNAPstream+
Technology:
Network (IP)
Wide Dynamic Range (WDR):
WDR 100dB
