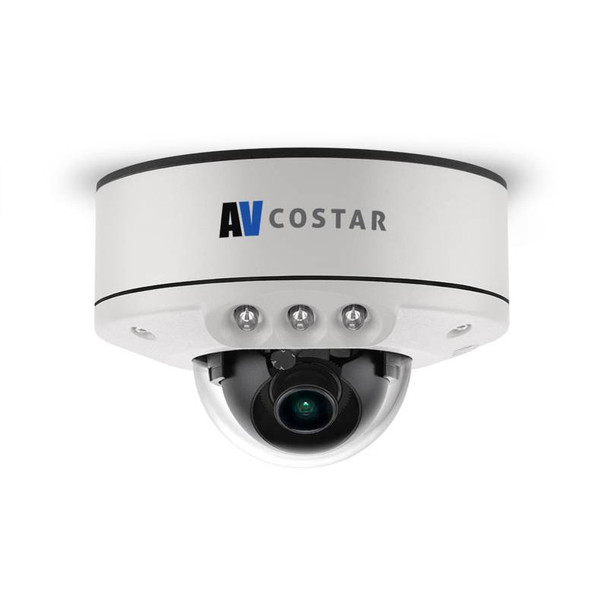

Arecont Vision AV2756DNIR-S 2MP H.265 IR Outdoor Dome IP Security Camera

Part Number: AV2756DNIR-S
Write a Review
Check other similar products:
  • Arecont Vision AV2756DNIR-S 2MP H.265 IR Outdoor Dome IP Security Camera
  • Arecont Vision AV2756DNIR-S 2MP H.265 IR Outdoor Dome IP Security Camera

Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265,
  • Field of View (Horizontal) : 106.7°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP66
  • Environmental : Outdoor


Arecont Vision AV2756DNIR-S 2MP H.265 IR Outdoor Dome IP Security Camera

The ConteraIP MicroDome LX megapixel cameras feature 1080p or 5-megapixel (MP) resolutions for optimum performance with a day/night mechanical IR cut filter and interchangeable lenses. Regardless of the time of day, the ConteraIP MicroDome LX is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions. For clear color images in low-light, NightView offers strong low-light sensitivity for capturing details in extremely poor-lit scenes, and is further enhanced in IR-S models by built-in IR LED illumination.

ConteraIP MicroDome LX cameras deliver professional surveillance, with ease of installation and set-up, for a variety of network surveillance requirements. The three-axis lens adjustment provides users with more camera placement options and the remote focus module allows users to adjust the camera focus after installation. An innovative spring arm design makes in-ceiling -F model installations a snap: simply slide the camera through the hole and secure the magnetized cover ring with a single screw. No additional hardware is required. The ConteraIP MicroDome LX camera series is available in an indoor, in-ceiling housing or in a surface mount IP66 rated version for indoor and outdoor applications. All models feature a vandal resistant, IK-10 rated cast-aluminum housing with a polycarbonate bubble making it capable of withstanding the equivalent of 55 kg (120 lbs) of force.

Key Features:

  • 1080p (2.1MP) Resolution
  • 2.8mm Lens
  • Remote Focus Module
  • Easily Adjustable 3-Axis Gimbal
  • Ultra Low-Profile Design / Small Size
  • SNAPstream+™ Capability to Reduce Bandwidth without Impacting Image Quality
  • NightView™ for Strong Low Light Performance
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • Enhanced WDR™ up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  • CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, and Scaling
  • On-Screen Display (OSD)
  • Defog Technology
  • Triple Encoder: H.265/H.264/MJPEG
  • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
  • All-in-One PoE Solution
  • Integrated IR LEDs (IR-S Models)
  • IK-10 Impact-Resistant Housing Outdoor Rated IP66 (IR-S Models)
  • Audio In / Out (Accessory Sold Separately)
  • Tamper-Resistant Housing

AV Costar™ was the first to bring H.264 to the mainstream market and recently developed SNAPstream™ (Smart Noise Adaptation and Processing) technology for reducing bandwidth without impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+ smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or prevent strain on the network.

The SD card slot supports up to 256GB of storage capacity for convenient onboard storage. The camera’s power is supplied via a Power-over-Ethernet (PoE - IEEE 802.3af) compliant network cable connection. The ConteraIP MicroDome LX is ONVIF (Open Network Video Interface Forum) Profile S, G, and T compliant, providing interoperability between network video products regardless of manufacturer.

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Camera Style:
Field of View (Horizontal):
Lens Size:
Lens Type:
Fixed Lens
Max. Storage Capacity:
256 GB
Night Vision Range (ft):
Product Series:
Arecont Vision ConteraIP MicroDome Series
Protection Code:
SD Card Support:
SD Card Supported
Special Technologies:
Arecont Vision SNAPstream+ Arecont Vision NightView
Network (IP)
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
