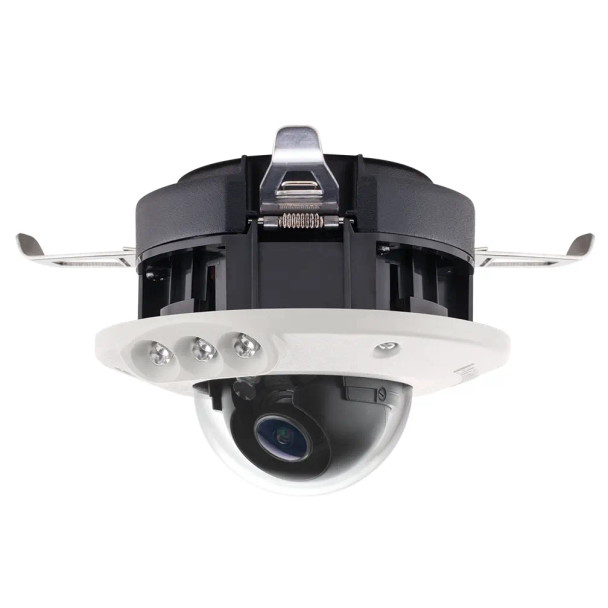

Arecont Vision AV5856DNIR-F 5MP Indoor Mini Dome IP Security Camera with 2.8mm Lens and Built-In IR

Part Number: AV5856DNIR-F
Write a Review
New Product!
$598.50
$377.15
— You save $221.35

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : M-JPEG, H.264, H.265,
  • Field of View (Horizontal) : 98°Field of View
  • Lens Type : Fixed
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IK10
  • Environmental : Indoor
  • Aperture : F1.6

Description

Arecont Vision AV5856DNIR-F 5MP Indoor Mini Dome IP Security Camera with 2.8mm Lens and Built-In IR

The Arecont Vision AV5856DNIR-F ConteraIP MicroDome LX delivers exceptional 5-megapixel surveillance performance in an ultra-low profile indoor design. This NDAA and TAA compliant IP security camera features advanced H.265/H.264 compression with SNAPstream+ technology, providing superior image quality while reducing bandwidth consumption by over 50%.

Engineered for professional indoor surveillance applications, this mini dome camera combines a 1/2.8" CMOS progressive sensor with Enhanced Wide Dynamic Range (WDR) up to 120dB, ensuring clear images in challenging lighting conditions. The integrated NightView technology and built-in IR LEDs provide excellent low-light performance with 0.15 Lux color sensitivity and 0.015 Lux black and white sensitivity.

The flush mount design with innovative spring-arm installation makes setup effortless - simply slide through the ceiling hole and secure with a single screw. The IK-10 impact-resistant housing and tamper-resistant construction ensure reliable operation in demanding environments, while the 3-axis gimbal provides flexible camera positioning with remote focus capability.

Key Features:

  • 5MP (2592x1944) resolution with up to 30fps performance; delivers crisp, detailed images for accurate identification
  • Enhanced WDR up to 120dB for superior performance in mixed lighting; ensures clear visibility in both bright and shadowed areas simultaneously
  • SNAPstream+ smart codec with H.265/H.264 compression; reduces bandwidth usage by over 50% without compromising image quality
  • Built-in IR LEDs with 50ft projection distance; provides reliable night vision capabilities for 24/7 surveillance
  • NDAA and TAA compliant with ONVIF Profile S, G, M, and T conformance; ensures compatibility and regulatory compliance for government installations
  • Ultra-low profile flush mount design with spring-arm installation; enables quick, tool-free ceiling installation with professional appearance
  • IK-10 impact-resistant housing with tamper detection; withstands equivalent of 120 lbs force for vandal-resistant security
  • MicroSDXC card slot supporting up to 1TB storage; provides local backup recording for enhanced data security

Additional Information

Aperture:
F1.6
Camera Style:
Mini Dome
Compliance:
TAA (Trade Agreements Act) NDAA Compliant
Compression:
M-JPEG H.264 H.265
Day/Night:
Dimensions:
4.0x3.1in
Environmental:
Indoor
Field of View (Horizontal):
98
Iris:
Fixed
Lens Size:
2.8mm
Lens Type:
Fixed
Max Power Consumption:
7.5 Watts
Minimum Illumination (B/W):
0.015 Lux
Minimum Illumination (Color):
0.15 Lux
Night Vision Range (ft):
50
Operating Humidity:
0% to 90%
Operating Temperature:
-5°C to 50°C (23°F to 122°F)
Power Supply:
PoE (IEEE 802.3af)
Protection Code:
IK10
Resolution:
5MP
SD Card Support:
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Storage Temperature:
-40°C to 60°C (-40°F to 140°F)
Technology:
Network (IP)
Wide Dynamic Range (WDR):
True WDR 120dB
