Description

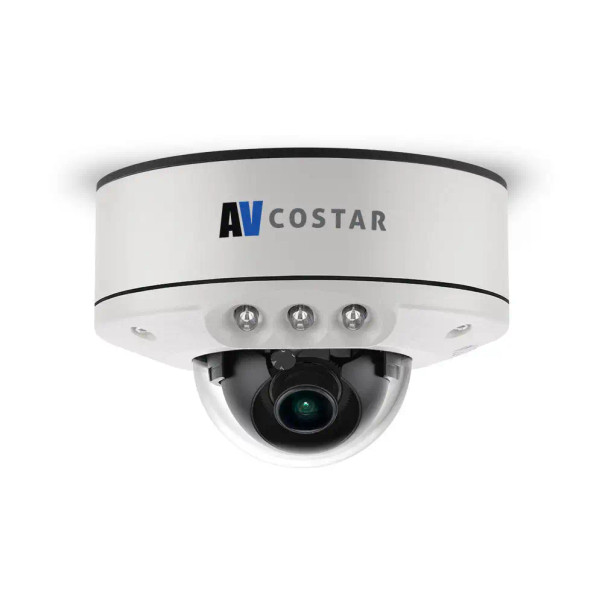

Arecont Vision AV8856DNIR-S 8MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR
The ConteraIP MicroDome LX AV8856DNIR-S delivers exceptional 8-megapixel (4K) surveillance performance in an ultra-low profile design. This surface-mount outdoor dome camera features 8MP CMOS progressive scan technology with H.265/H.264 compression and SNAPstream+ smart codec to reduce bandwidth by over 50% while maintaining high-quality video. The camera excels in challenging lighting conditions with Enhanced WDR up to 120dB and NightView low-light technology.
Built for outdoor installations, this IK-10 vandal-resistant camera withstands up to 120 lbs of force with its cast-aluminum housing and polycarbonate dome. The IP66 weather-resistant rating ensures reliable operation in temperatures from -20°C to +50°C. The integrated 850nm IR LEDs provide illumination up to 50 feet with an 80° coverage angle, while the 2.8mm fixed lens offers a 106.7° horizontal field of view for comprehensive area monitoring.
Advanced features include on-camera analytics, 3-axis gimbal adjustment, remote focus module, and up to 1TB MicroSDXC card support for edge storage. The camera supports multiple streaming modes, CorridorView 90° image rotation, and is ONVIF Profile S, G, M, and T conformant. NDAA and TAA compliant for government installations.
Key Features:
- 8MP (4K) resolution at 30fps with ultra-low profile design; delivers crystal-clear detail identification for security applications
- H.265/H.264 compression with SNAPstream+ technology; reduces bandwidth usage by over 50% without compromising image quality
- Enhanced WDR up to 120dB and NightView low-light performance; ensures clear images in mixed lighting and poor visibility conditions
- Built-in 850nm IR LEDs with 50ft range and 80° coverage; provides reliable nighttime surveillance without external illumination
- IK-10 vandal-resistant and IP66 weather-proof housing; withstands 120 lbs of force and harsh outdoor environments
- 2.8mm fixed lens with 106.7° horizontal field of view; covers wide areas with minimal camera requirements
- 3-axis gimbal adjustment with remote focus module; enables precise positioning and focus adjustment after installation
- On-camera analytics and up to 1TB MicroSDXC storage; provides intelligent event detection and local backup capabilities
- ONVIF conformant with multi-streaming capability; ensures compatibility with third-party VMS platforms
- NDAA and TAA compliant; meets government security requirements for federal installations
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Dome
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
Compression:
|
MJPEG
H.264
H.265
|
Day/Night:
|
|
Dimensions:
|
4.0x2.6x4.0in
|
Environmental:
|
Outdoor
|
Lens Size:
|
2.8mm
|
Lens Type:
|
Fixed Iris
|
Max Power Consumption:
|
7.5 Watts
|
Minimum Illumination (B/W):
|
0.018 Lux
|
Minimum Illumination (Color):
|
0.18 Lux
|
Night Vision Range (ft):
|
50
|
Power Supply:
|
PoE (IEEE 802.3af)
|
Protection Code:
|
IP66
IK10
|
Resolution:
|
8MP
|
SD Card Support:
|
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
Technology:
|
Network (IP)
|
Weight:
|
0.95lbs
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
