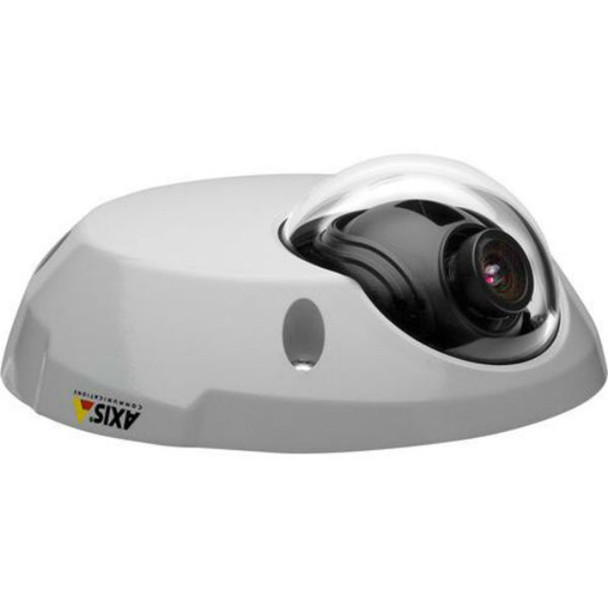

AXIS 209FD-R Rugged Network Dome IP Security Camera

Brand: AXIS
Part Number: 209FD-R
Write a Review
Check other similar products:
Discontinued
  • AXIS 209FD-R Rugged Network Dome IP Security Camera
  • AXIS 209FD-R Rugged Network Dome IP Security Camera

? Help me pick a security camera

?? Connect Your Axis Camera to YouTube

Technical Support Technical Support
  • Sensor Type : CMOS
  • Environmental : Outdoor

Description

AXIS 209FD-R Rugged Network Dome IP Security Camera

AXIS 209FD-R Rugged Network IP Dome Security Cameras are compact Network Dome cameras ideal for discreet IP video surveillance in various adverse environments. Axis 209FD-R Rugged IP Dome Security Camera was designed specifically to withstand tough applications such as Buses and Trains and it's Tamper-resistant / Vandal-reistant casing stands up to vibrations, humidity, dust and fluctuating temperatures making Axis 209FD-R ideal for Transit.

Axis 209FD-R Rugged fixed dome Network IP security camera utilizes Progressive scan and advanced image processing for clearer and sharper imaging. Axis 209FD-R Rugged Network IP dome Security Camera has a gimbal for perfect camera adjustment and allows for application on walls or ceilings, and further supports PoE (power over ethernet) for ease of installation.

Axis 209FD-R Rugged& Network IP Dome security camera provides a high degree of security by using mulitple levels of Passwords, IP address filtering and HTTPS encryption. Axis 209FD-R Rugged Network Dome also supports IPv6 in addition to IPv4, as insurance against the growing shortage of IP addresses, eliminating the need for network address translation and simplifying configuration in an IPv6-enabled network. with dual streaming of MPEG4 and Motion JPEG Axis 209FD-R IP dome security cameras video streams can be optimized for image quality and bandwidth efficiency by configuring frame rates, resolution, compression level and format.

AXIS 209FD-R includes the industry standard Axis Application Programming Interface (API), AXIS VAPIX™, which facilitates the development of customized software solutions. The API ensures compatibility with the market’s widest range of third-party applications, available from Axis Application Development Partners.
& With AXIS 209FD-R, video can be accessed at any time, from any computer anywhere. AXIS 209FD-R allows for powerful event management functionality such as video motion
detection and pre/post-image alarm buffering. AXIS 209FD-R is supported by AXIS Camera Station video management software, which offers remote video monitoring, recording and playback.

 Key Features:

  • Progressive Scan for clear undistorted imagery
  • 30fps VGA 640 x 480 Resolution
  • Compact, Flat Non-invasive Design
  • Rugged IP66 Construction w/Heater
  • PoE Power Over Ethernet Supported
  • Easy Installation and adjustment

AXIS 209FD-R Specifications:

  • 1/4” Micron Progressive Scan RGB VGA CMOS
  • LENS: 3.0 mm, F2.0, fixed iris Focus range: 0.5 m to infinity
  • Angle of View: 62° horizontal
  • Camera angle adjustment: Tilt 0 - 90°, Pan ±10°, Rotation ±10°
  • Min. illumination: 1.5 - 10000 lux, F2.0
  • Video compression:
    & - Motion JPEG
    & - MPEG-4 Part 2 (ISO/IEC 14496-2) with motion estimation (Profiles: SP and ASP)
  • Resolutions: 9 resolutions from 640x480 to 160x120 via API, 6 selections via config. web page
  • Frame Rate: Up to 30 fps at all resolutions (Motion JPEG or MPEG-4)
  • Video Streaming: Simultaneous Motion JPEG and MPEG-4
  • Image settings:
    & - Compression levels: 100
    & - Rotation: 0º, 180º
    & - Configurable color level, brightness, sharpness, white balance, exposure control, backlight compensation
    & - Overlay capabilities: time, date, text, image or privacy mask
  • Shutter time: 1/4 sec to 1/10000 sec
  • Users: 20 simultaneous users [Unlimited users using multicast (MPEG-4)]
  • Alarm and event management:
    & - Events triggered by video motion detection or according to a schedule
    & - Image upload over FTP, email and HTTP
    & - Notification over TCP, email and HTTP
    & - Pre- and post alarm buffer of 9 MB (approx 5 min of 320x240 resolution video at 4 fps)
  • Connector: Female RJ-45 for Ethernet 10BaseT/100BaseTX
  • Casing: Rugged Polycarbonate base and polycarbonate transparent cover, Tamper-proof mounting IP66
  • Processors and memory:
    & - CPU, video processing and compression: ARTPEC-A
    & - RAM: 32 MB
    & - Flash: 8 MB
  • Power: Power over Ethernet IEEE 802.3af, Class 1
  • Operating conditions: -20 - 50 ºC (-4-122 ºF) Humidity 20 - 80% RH (non-condensing)
  • Supported protocols: IPv4/v6, HTTP, HTTPS, SSL/TLS*, TCP, ICMP, QoS, SNMPv1/v2c/v3 (MIB-II), RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, DHCP, UPnP, Bonjour, ARP, DNS, DynDNS, SOCKS, NTP
  • System integration support:
    & - Open API for software integration, including AXIS VAPIX*
    & - AXIS Media Control SDK*, event trigger data in video stream
    & - Quality of Service (QoS) Layer 3, DiffServ Model
  • Accessories (included):
    & - AXIS PoE Midspan 1-port, key for tamper-proof screws,
    & - Installation Guide, CD with installation tool, recording software and User’s Manual, licenses for 1 encoder and 1 decoder, decoder software for Windows
  • Video management software (not incl.): AXIS Camera Station - video management software for viewing, recording and archiving up to 25 cameras (more info available)

Installation, management and maintenance info:

-Installation tool on CD and Web-based configuration
-Configuration backup and restore
-One-click installation with Internet Dynamic DNS (free service from Axis)
-Firmware upgrades over HTTP or FTP, firmware available at www.axis.com

Additional Information

Analytics:
Motion Detection
Camera Style:
Dome
Compliance:
NDAA Compliant
Durability:
Weatherproof
Environmental:
Outdoor
Image Settings:
Privacy Mask
Sensor Type:
CMOS
Technology:
Network (IP)
