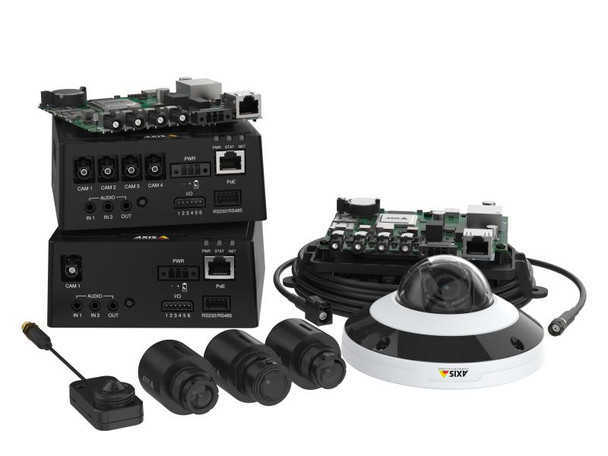

AXIS F9114-B 4 Channel Barebone 2nd Generation Main Unit with Audio and I/O - 01991-031

AXIS F9114-B 4 Channel Barebone 2nd Generation Main Unit with Audio and I/O - 01991-031

AXIS F9114-B is excellent for building customized video solutions. Sold without a casing, this UL recognized barebone main unit is ideal for integration into a UL certified end-product. Based on a divided camera concept, it can be installed indoors or inside vehicles. It supports four HDTV 1080p video streams at 30 fps on all channels and requires only one video management software (VMS) license. Furthermore, it includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.

Key Features:

• Only compatible with 2nd generation sensors and cables
• Compact barebone main unit
• UL recognized component
• Multiple sensor and cable options
• 1080p at 30 fps on 4-channels

Smart features

This barebone main unit supports four sensor units and requires only one video management software (VMS) license. Ideal for emergency vehicles and buses, it includes ignition control functionality with controlled shutdown to ensure you don’t drain the vehicle’s battery. It supports two-way audio and I/O so it’s possible to connect a digital or analog microphone allowing you to listen in and trigger audio warnings. Furthermore, it offers Axis Zipstream with support for H.264 and H.265 for reduced storage and bandwidth requirements without compromising image quality.

High performance and maximum flexibility

With four HDTV 1080p video streams at 30 fps on all channels, AXIS F9114-B delivers high-quality video even in challenging and low light conditions. Thanks to Forensic WDR, it provides clarity when there’s both dark and light areas in the scene. Axis Lightfinder captures sharp, color images in low light. Based on a divided network camera concept, this main unit allows for maximum flexibility where both the sensor unit as well as cable type and length are chosen based on your needs. Both AXIS F Series sensors and cables available from Axis use SMA-FAKRA connectors to ensure rugged installations.

Easy integration and built-in cybersecurity

AXIS F9114-B is excellent for building your own customized solutions. Sold without a casing, this UL recognized component makes it perfect for integration into a UL certified end-product. This is ideal for customers who want to integrate into other devices such as ATMs and ticket machines. Furthermore, it includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
