Description

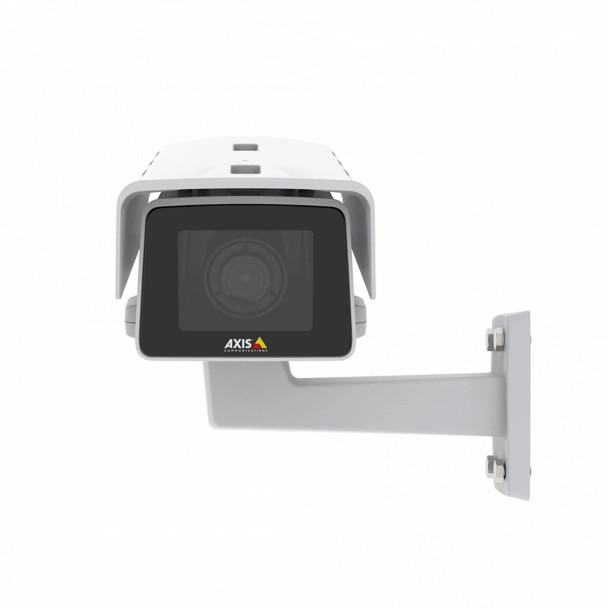

AXIS M1137-E 5MP Mk II Network Box Camera - 02623-001
AXIS M1137-E outdoor-ready camera is easy to install and operate. With PoE and redundant DC power, AXIS M1137-E ensures your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. Thanks to AXIS Object Analytics you can detect and classify humans and vehicles. Furthermore, AXIS M1137-E comes enclosed in an IP66-, IK10-, and NEMA 4X-rated casing to protect against water, corrosion, dust, and impacts.
Key Features:
- Compact and flexible design
- Lightfinder and Forensic WDR
- Audio input
- AXIS Object Analytics
- Remote zoom and focus with i-CS
Downloads
Datasheet
AXIS-02623-001-Datasheet-A1
Additional Information
|
Audio Capability:
|
Two-Way Audio
|
|
Camera Style:
|
Box
|
|
Color:
|
White
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
IR cut filter
|
|
Dimensions:
|
122.4 x 223.7 x 317 mm (4.82 x 8.81 x 12.48 in)
|
|
Durability:
|
Vandal Proof
Dust Resistant
Waterproof
|
|
IR Corrected:
|
IR Corrected
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
3.5~10mm
|
|
Lens Type:
|
Varifocal Lens
|
|
Max Power Consumption:
|
7.2 Watts
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at)
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
|
RAM:
|
1GB
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/33500s
|
|
Storage Humidity:
|
5% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 65 °C (-40 °F to 149 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
