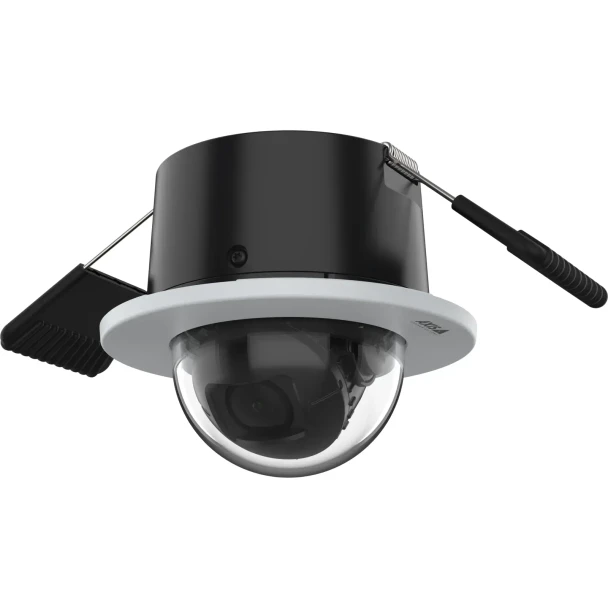

AXIS M3098-H 8MP Indoor Mini Dome IP Security Camera with 3.76mm Lens - 03396-001

AXIS M3098-H 8MP Indoor Mini Dome IP Security Camera with 3.76mm Lens - 03396-001

The AXIS M3098-H is an AI-powered 8MP recessed mini dome camera from the AXIS M30 Series, purpose-built for discreet in-ceiling installation in indoor drop-ceiling environments such as offices, retail stores, airports, and hotel lobbies. Designed so that only the camera dome and covering ring are externally visible, it blends seamlessly into ceiling tiles while delivering full 3840×2160 (4K) resolution imaging. The 1/1.8" progressive scan CMOS sensor with a 3.76mm fixed lens produces a 124° horizontal field of view — ideal for wide-area coverage from a single mounting point — and the Lightfinder technology ensures clear, full-color imagery in near-darkness conditions without IR illumination.

The M3098-H ships with AXIS Object Analytics and AXIS Audio Analytics preinstalled at no additional cost. AXIS Object Analytics leverages the onboard CV75 SoC deep learning processing unit to detect and classify humans, vehicles, and vehicle subtypes across up to 10 simultaneous behavioral scenarios — including line crossing, tailgating detection, and PPE monitoring. The integrated acoustic sensor adds an audio intelligence layer: AXIS Audio Analytics detects screams, shouts, glass breaks, and coughing fits using adaptive AI classification, triggering alerts even when no visual event is visible. AXIS Scene Metadata also delivers granular object attributes including vehicle color and clothing color for forensic search.

Axis Edge Vault provides hardware-rooted cybersecurity through a FIPS 140-3 Level 3 / CC EAL6+ certified secure element for cryptographic key storage, signed video for tamper evidence, secure boot, and AES-XTS-256-bit encrypted filesystem. The camera is rated IP42 for indoor protection, powered via PoE (IEEE 802.3af, max 3.9W) — making it extremely energy-efficient for high-density indoor deployments — and is UL 2043 rated for plenum spaces. TAA compliant with a 5-year manufacturer warranty and software support until 2035.

Key Features:

• 8MP 1/1.8" CMOS Sensor, 124° Horizontal FOV; delivers 4K wide-area coverage from a recessed form factor that is virtually invisible in drop-ceiling installations.
• Recessed In-Ceiling Design; only the dome and cover ring are visible externally, providing the most discreet indoor surveillance option in the AXIS M30 Series.
• AXIS Object Analytics Pre-installed; AI detection and classification of humans, vehicles, and subtypes across 10 simultaneous behavioral scenarios at no additional licensing cost.
• AXIS Audio Analytics with Built-In Acoustic Sensor; detects screams, shouts, and glass breaks, generating alerts based on audio events even without visible triggers.
• Forensic WDR up to 120 dB; balances exposure across challenging mixed-lighting indoor scenes, preserving forensic detail in both bright and dark areas.
• Lightfinder; delivers full-color imaging in near-darkness without IR illumination, enabling natural-light-quality video in low-light lobbies and corridors.
• PoE (IEEE 802.3af), max 3.9W; ultra-low power draw simplifies large-scale indoor deployment with minimal infrastructure cost.
• UL 2043 Rated for Plenum; approved for installation in air-handling spaces within ceilings and walls, meeting stringent building code requirements.
• Axis Edge Vault — FIPS 140-3 Level 3 / CC EAL6+; hardware-rooted security with signed video, secure boot, and encrypted filesystem for evidence integrity.
• TAA Compliant + 5-Year Warranty; meets federal procurement requirements and provides long-term investment protection for enterprise and government deployments.
