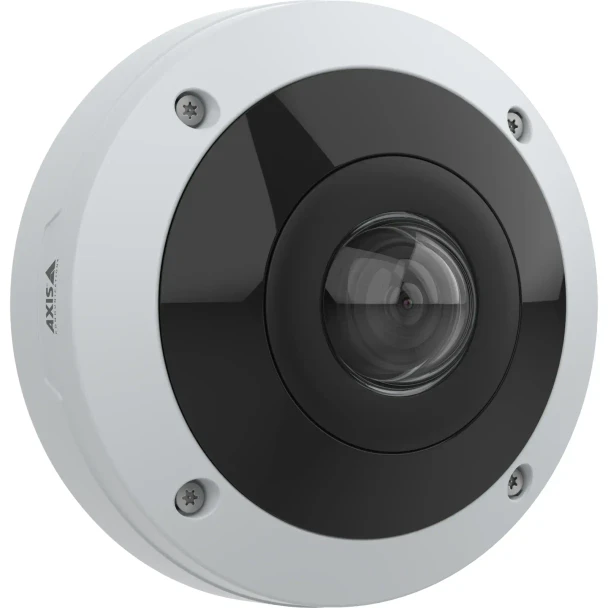

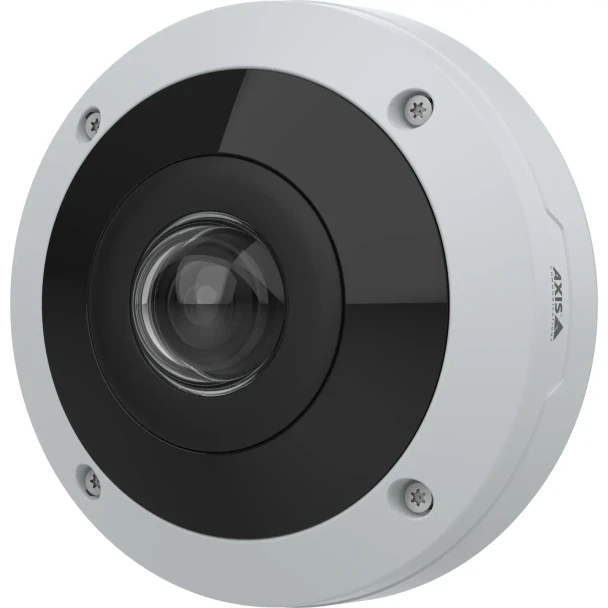

AXIS M4348-PLVE 12MP Outdoor 360° Panoramic IP Security Camera with 1.7mm Lens and Built-In IR - 03133-001

AXIS M4348-PLVE 12MP Outdoor 360° Panoramic IP Security Camera with 1.7mm Lens and Built-In IR - 03133-001

The AXIS M4348-PLVE is a next-generation 12MP fisheye camera from the AXIS M43 Series, purpose-built for outdoor 360° panoramic surveillance in parking lots, plazas, retail floors, and perimeter zones. Featuring a 1/1.6" progressive scan CMOS sensor with 2.0 µm pixel size, it delivers up to 3536×3536 resolution at 30 fps — a 30% resolution improvement over previous AXIS M43 generation cameras. Its 1.7mm fixed iris lens captures a full 185° horizontal field of view, enabling complete coverage from a single mounting point while offering camera-side dewarped views for operator-friendly monitoring without server-side processing overhead.

The AXIS M4348-PLVE is powered by the ARTPEC-9 SoC with an onboard deep learning processing unit (DLPU), enabling AXIS Object Analytics and AXIS Audio Analytics to run simultaneously at no additional licensing cost. AXIS Object Analytics detects and classifies humans, vehicles, and vehicle subtypes across up to 10 simultaneous scenarios — including line crossing, occupancy monitoring, and tailgating detection — using AI models specifically trained for 360° fisheye imagery. The built-in digital MEMS microphone and AXIS Audio Analytics add acoustic intelligence, detecting screams, shouts, glass breaks, and coughing fits, and the unique directional audio detection feature identifies the precise direction of the sound source within the circular overview.

Axis Edge Vault provides hardware-rooted cybersecurity through a FIPS 140-3 Level 3 / CC EAL6+ certified secure element for cryptographic key storage, signed video for tamper evidence, secure boot, and AES-XTS-256 bit encrypted filesystem. OptimizedIR illumination with individually controllable IR LED zones provides up to 65 ft (20 m) night vision coverage. The camera is IP66, NEMA 4X, and IK10-rated for demanding outdoor deployments, operates from -40°C to 50°C, and is TAA compliant. Powered by a single PoE+ (IEEE 802.3at) cable at max 16.7W, it includes a 5-year manufacturer warranty.

Key Features:

• 12MP 1/1.6" CMOS Sensor, 3536×3536 Resolution; delivers 30% higher resolution than previous AXIS M43 generation for sharper panoramic detail across wide areas.
• 185° Fisheye Lens with Camera-Side Dewarping; provides full 360° coverage with multiple dewarped view modes eliminating server-side processing load.
• AXIS Object Analytics (360°-Trained AI Models); detects and classifies humans and vehicles across 10 simultaneous scenarios optimized for fisheye imagery.
• AXIS Audio Analytics with Directional Detection; identifies sound type and pinpoints its origin within the circular view overlay for faster operator response.
• OptimizedIR with Individual LED Zone Control; adaptive IR illumination up to 65 ft (20 m) ensures evenly lit night scenes across the full panoramic field.
• ARTPEC-9 SoC + DLPU; enables simultaneous video and audio AI analytics without performance degradation or additional licensing fees.
• IP66 + NEMA 4X + IK10; provides full outdoor weatherproofing, corrosion resistance, and vandal resistance for demanding installation environments.
• Axis Edge Vault — FIPS 140-3 Level 3 / CC EAL6+; hardware-rooted security with signed video, secure boot, and encrypted filesystem for evidence integrity.
• TAA Compliant + 5-Year Warranty; meets federal procurement requirements and provides long-term investment protection for enterprise and government deployments.
