Description

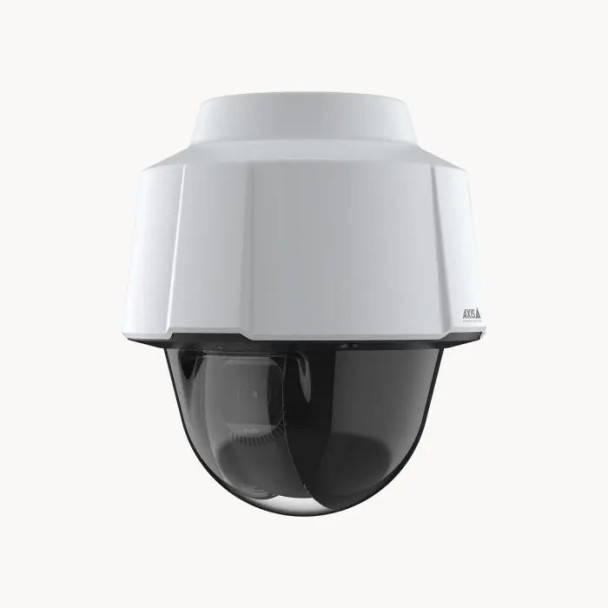

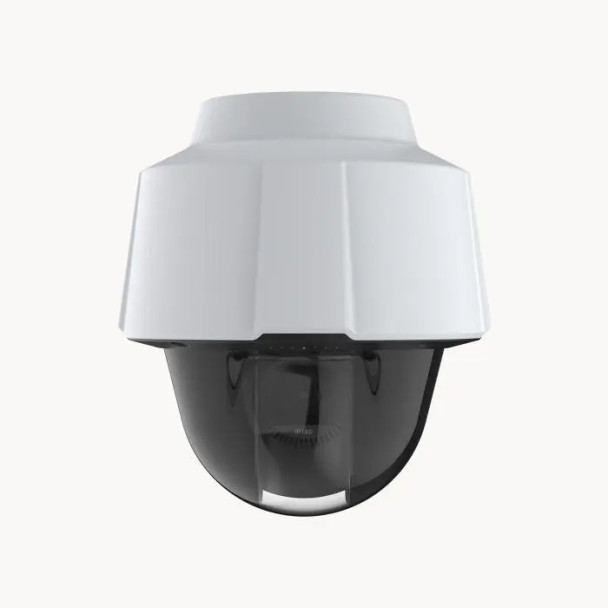

AXIS P5676-LE 4MP IR Outdoor PTZ Camera with 30x Optical Zoom Lens, 02414-001
This high-performance PTZ camera offers 4 MP image quality with 30x optical zoom and IR. Forensic WDR and Lightfinder 2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness. It offers support for analytics and includes AXIS Object Analytics to detect and classify people and vehicles. This cost-effective camera includes built-in cybersecurity features to safeguard your system and prevent unauthorized access. Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements. Furthermore, you can pop it into an AXIS Q6100-E using AXIS TP6901-E Adapter Bracket and enjoy 360° overview for total situational awareness.
Key Features:
- 4 MP with 30x optical zoom
- Forensic WDR, Lightfinder 2.0, IR Illumination
- Support for advanced analytics
- Built-in cybersecurity features
- Zipstream with support for H.264/H.265
Downloads
Installation Guide
AXIS-02414-001-Installation-Guide-A1
Datasheet
AXIS-02414-001-Datasheet-A1
Firmware
AXIS-02414-001-Firmware-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
P5676-LE
|
|
Aperture:
|
F1.6
F4.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
LPCM
AAC-LC
PCM
G.726
ADPCM
|
|
Camera Style:
|
PTZ
|
|
Certifications:
|
FCC
ICES-003
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
ACAP (AXIS Camera Application Program)
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Digital Zoom:
|
12
|
|
Dimensions:
|
242 x 205 mm (9.53 x 8.1 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
57.1
2.1
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
4.5~135mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
30 Watts
|
|
Max. FPS and Resolution:
|
60fps at 2688 x 1512
|
|
Minimum Illumination (B/W):
|
0.01 Lux at 30 IRE F1.6
|
|
Minimum Illumination (Color):
|
0.1 lux at 30 IRE F1.6
|
|
Night Vision Range (ft):
|
656
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Optical Zoom:
|
30x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
Hi-PoE (IEEE802.3bt)
|
|
Processor (CPU):
|
ARTPEC-7
|
|
Product Series:
|
AXIS P56 Series
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
|
RAM:
|
1GB
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.9"
|
|
Sensor Type:
|
RGB CMOS
|
|
Shutter Speed:
|
1/5-1/62500s
|
|
Special Technologies:
|
AXIS Zipstream
AXIS Object Analytics
AXIS Edge Vault
AXIS Lightfinder 2.0
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
