Description

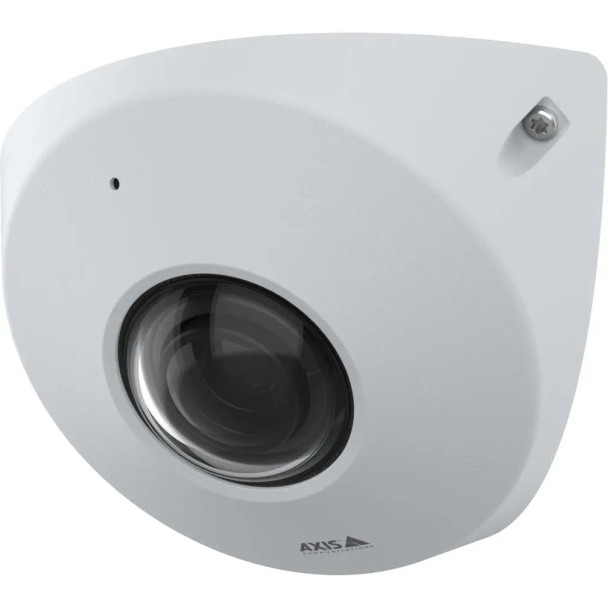

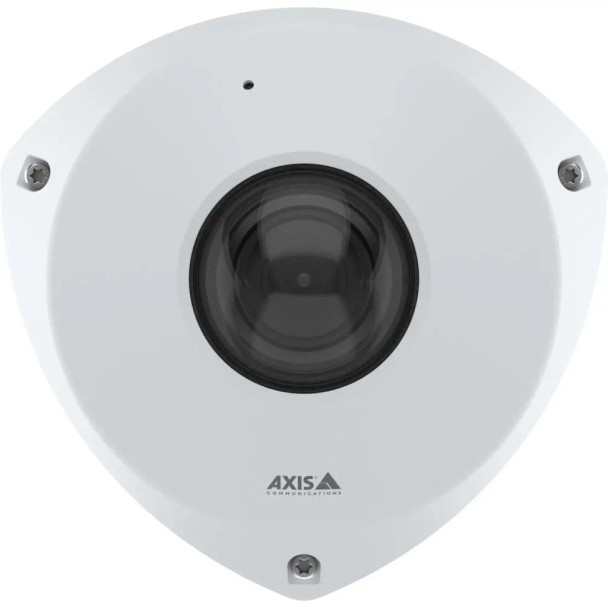

AXIS P9117-PV 6MP Network IP Corner Camera with No Blind Spots - 02864-001
AXIS P9117-PV delivers 360° panoramic view with no blind spots. This 6 MP corner-mounted camera includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. AXIS TP9801 Cover Steel is also available as an accessory. Featuring a deep learning processing unit, it’s possible to run powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different objects of interest. With a built-in microphone, it’s out-of-the-box-ready for AXIS Audio Analytics. Furthermore, Axis edge vault, a hardware-based cybersecurity platform, safeguards the device.
Key Features:
- Full coverage and no blind spots
- 6 MP with stereographic lens
- Built-in microphone and Axis Audio Analytics
- Vandal-resistant (IK10) and IP66-rated dust protection
- Built-in cybersecurity with Axis edge vault
Downloads
Datasheet
AXIS-02864-001-Datasheet-A1
Additional Information
|
Audio Capability:
|
Two-Way Audio
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compliance:
|
TAA (Trade Agreements Act)
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
Auto
IR cut filter
|
|
Dimensions:
|
122.2 x 148.3 x 107.2 mm (4.81 x 5.84 x 4.22 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Focus:
|
Fixed
|
|
IR Corrected:
|
IR Corrected
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
1.1mm
|
|
Max Power Consumption:
|
5.3 Watts
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at)
|
|
Product Series:
|
AXIS P91 Series
|
|
Protection Code:
|
IP66
IK10
|
|
RAM:
|
2GB
|
|
Resolution:
|
6MP
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/33500s
|
|
Storage Temperature:
|
-40 °C to 65 °C (-40 °F to 149 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
