Description

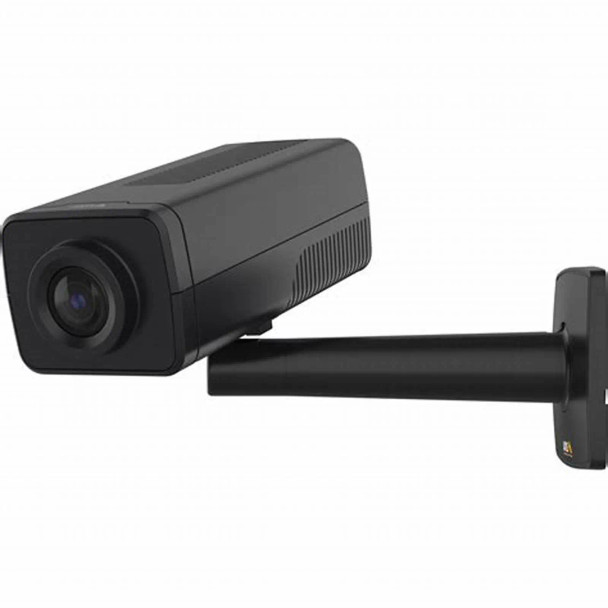

AXIS Q1728 8MP Indoor Block IP Security Camera with 5.9-13.3mm Lens - 02839-001
The AXIS Q1728 is an 8MP indoor block IP security camera designed for high-performance surveillance with advanced AI-powered analytics. Featuring a varifocal 5.9-13.3mm P-iris lens, it provides a flexible horizontal field of view ranging from 108° to 49°, making it ideal for applications requiring wide-area monitoring and high-detail image capture. Equipped with Lightfinder 2.0 and Forensic WDR technology, the camera ensures superior image quality in both low-light and high-contrast conditions. AI-powered AXIS Object Analytics enables real-time human and vehicle detection, while Axis Edge Vault cybersecurity ensures secure data protection. Supporting multiple streaming formats, including AV1, H.264, and H.265, it optimizes bandwidth and storage efficiency. With its compact design and compatibility with Axis and third-party enclosures, the AXIS Q1728 is well-suited for security applications requiring precision imaging, such as traffic monitoring, retail security, and custom surveillance solutions where flexibility in lens choice and processing power is needed.
Key Features:
- 8MP resolution; delivers ultra-high-definition imaging for detailed surveillance.
- 5.9-13.3mm varifocal P-iris lens; provides an adjustable field of view from 108° to 49°.
- Lightfinder 2.0 technology; ensures full-color imaging in low-light environments.
- Forensic WDR up to 120 dB; enhances image clarity in challenging lighting conditions.
- AI-powered AXIS Object Analytics; enables human and vehicle detection with real-time event monitoring.
- Axis Edge Vault; provides built-in cybersecurity for data protection.
- Electronic image stabilization; minimizes motion blur for improved image clarity.
- Multi-streaming capability; supports AV1, H.264, and H.265 compression for optimized bandwidth usage.
- ONVIF compliant; ensures seamless integration with leading video management systems.
- PoE and DC power options; allows flexible installation in various setups.
- NDAA and TAA compliant; meets federal and enterprise security standards.
Downloads
Additional Information
Aperture:
|
F1.6
F2.9
|
Compliance:
|
TAA (Trade Agreements Act)
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
IR cut filter
|
Dimensions:
|
180 x 80 x 62 mm
|
Environmental:
|
Indoor
|
Iris:
|
P-iris
|
Lens Size:
|
5.9–13.3mm
|
Lens Type:
|
Varifocal Lens
|
Power Supply:
|
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at)
10 to 28 VDC
|
Resolution:
|
8MP (4K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/1.2"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
5% to 95% RH (non-condensing)
|
Storage Temperature:
|
-40 °C to 65 °C (-40 °F to 149 °F)
|
Technology:
|
Network (IP)
|
Warranty:
|
5-year Manufacturer Warranty
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
