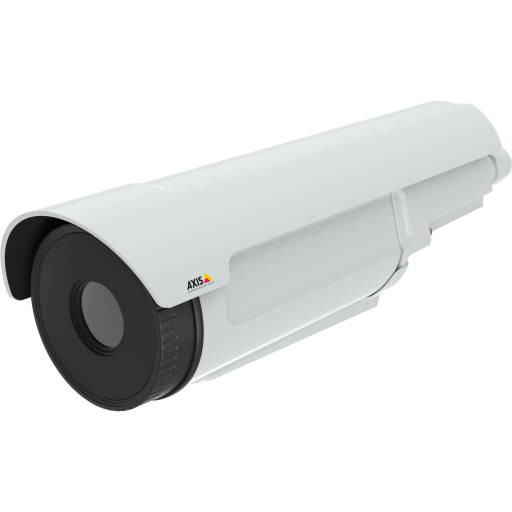

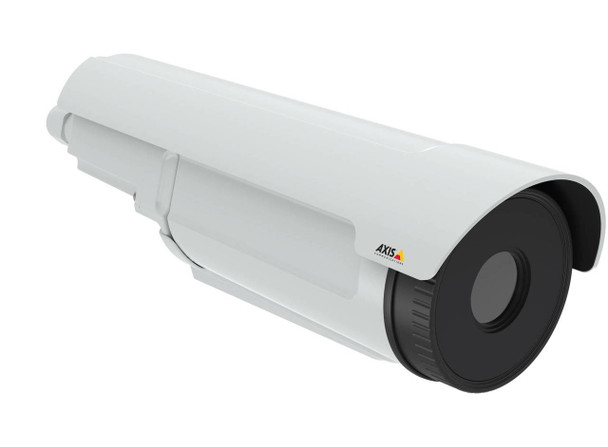

Axis Q1931-E Thermal Bullet IP Security Camera - 0601-001
- Sensor Type : Thermal Sensor
- Protection Code : IP66
- Environmental : Outdoor
- Audio Support : Built-in Microphone
✅ Help me pick a security camera
🖥 Connect Your Axis Camera to YouTube
The Axis Q1931-E PT is a mount thermal IP bullet camera with a pan/tilt motor for increased flexibility. Using a 7mm lens, it records at 8.3 to 30fps at a resolution up to 768x576. The thermal imaging is extremely apt at detection, easily detecting people, objects, or whole incidents whether in complete darkness or other similarly difficult conditions. With a noise filter, image fuzz is cut down allowing for a much clearer picture. IP66 protection standards keep this camera safe from inclement weather conditions and an onboard heater lets it operate in extreme temperatures.
Key Features of the Axis Q1931-E PT
Included accessories: Installation Guide, Windows decoder 1-user license, Torx T20 screw driver
Warranty: Axis 3-year warranty
Detection Ranges
Focal length | Viewing angle | Detection | ||||
mm | Horizontal | Human: 1.8 x 0.5 m Critical dimension: 0.75 m |
Vehicle: 1.4 x 4.0 m Critical dimension: 2.3 m |
|||
m | yards | m | yards | |||
Detection (1.5 pixels on target) |
7 | 55° | 210 | 230 | 630 | 689 |
13 | 28° | 380 | 415 | 1160 | 1268 | |
35 | 10.7° | 1030 | 1126 | 3100 | 3390 | |
60 | 6.2° | 1800 | 1968 | 5400 | 5905 | |
Recognition (6 pixels on target) |
7 | 55° | 50 | 55 | 160 | 175 |
13 | 28° | 90 | 98 | 300 | 328 | |
35 | 10.7° | 260 | 284 | 800 | 875 | |
60 | 6.2° | 440 | 480 | 1350 | 1476 | |
Identification (12 pixels on target) |
7 | 55° | 25 | 27 | 80 | 87 |
13 | 28° | 50 | 54 | 150 | 165 | |
35 | 10.7° | 130 | 142 | 400 | 437 | |
60 | 6.2° | 220 | 240 | 680 | 744 |
The detection ranges are calculated with Johnson's criteria and vary in different weather conditions.
Click for other lens options: Security Camera Lenses
Alternative SKUs:
|
Q1931-E
|
Analytics:
|
Motion Detection
Audio Detection
|
Camera Style:
|
Bullet
|
Color:
|
White
|
Compliance:
|
NDAA Compliant
|
Durability:
|
Weatherproof
|
Environmental:
|
Outdoor
|
Product Series:
|
AXIS Q19 Series
|
Protection Code:
|
IP66
|
Specialized Camera Feature:
|
Thermal
|
Technology:
|
Network (IP)
|
Warranty:
|
3-year Manufacturer Warranty
|
