Description

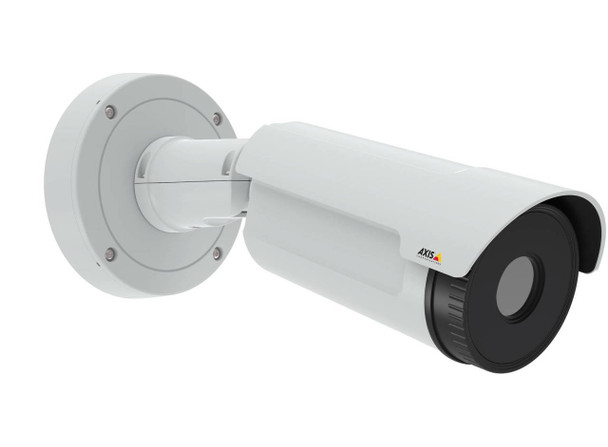

Axis Q1931-E Thermal Bullet IP Security Camera 0601-001
The Axis Q1931-E is a mount thermal IP bullet camera. Using a 7mm lens, it records at 8.3 to 30fps at a resolution up to 768x576. The thermal imaging is extremely apt at detection, easily detecting people, objects, or whole incidents whether in complete darkness or other similarly difficult conditions. With a noise filter, image fuzz is cut down allowing for a much clearer picture. This camera comes with 2-way audio and a microphone. IP66 protection standards keep this camera safe from inclement weather conditions and an onboard heater lets it operate in extreme temperatures.
Key Features:
- 7mm Fixed Lens
- Horizontal angle of view: 55°, F1.2
- 384x288 or up to 768x576
- 8.3 to 30fps
- Motion Detection
- Audio Detection
- Thermal Imaging
- 2-way Audio
- Microphone
- Weatherproof
- Arctic Temperatures
- -40 °C to 60 °C (-40 °F to 142 °F)
Included accessories: Installation Guide, Windows decoder 1-user license, Torx T20 screw driver Wall and ceiling mount bracket, RJ45 network cable 5 m (16ft) Pipe converter for US
Warranty: Axis 3-year warranty
Detection Ranges
| Focal length | Viewing angle | Detection | ||||
| mm | Horizontal | Human: 1.8 x 0.5 m Critical dimension: 0.75 m |
Vehicle: 1.4 x 4.0 m Critical dimension: 2.3 m |
|||
| m | yards | m | yards | |||
| Detection (1.5 pixels on target) |
7 | 55° | 210 | 230 | 630 | 689 |
| 13 | 28° | 380 | 415 | 1160 | 1268 | |
| 35 | 10.7° | 1030 | 1126 | 3100 | 3390 | |
| 60 | 6.2° | 1800 | 1968 | 5400 | 5905 | |
| Recognition (6 pixels on target) |
7 | 55° | 50 | 55 | 160 | 175 |
| 13 | 28° | 90 | 98 | 300 | 328 | |
| 35 | 10.7° | 260 | 284 | 800 | 875 | |
| 60 | 6.2° | 440 | 480 | 1350 | 1476 | |
| Identification (12 pixels on target) |
7 | 55° | 25 | 27 | 80 | 87 |
| 13 | 28° | 50 | 54 | 150 | 165 | |
| 35 | 10.7° | 130 | 142 | 400 | 437 | |
| 60 | 6.2° | 220 | 240 | 680 | 744 | |
The detection ranges are calculated with Johnson's criteria and vary in different weather conditions.
Click for other lens options: Security Camera Lenses
Downloads
Additional Information
|
Alternative SKUs:
|
Q1931-E
|
|
Analytics:
|
Motion Detection
Audio Detection
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Bullet
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Product Series:
|
AXIS Q19 Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
384 x 288
|
|
Sensor Type:
|
Thermal Sensor
|
|
Specialized Camera Feature:
|
Thermal
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
