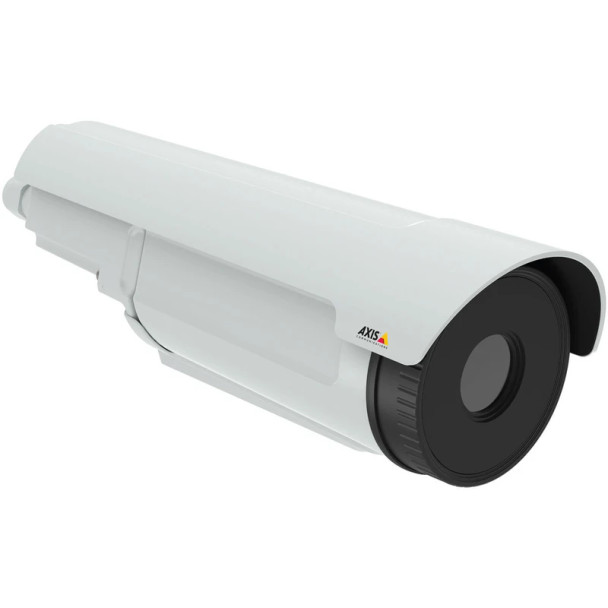

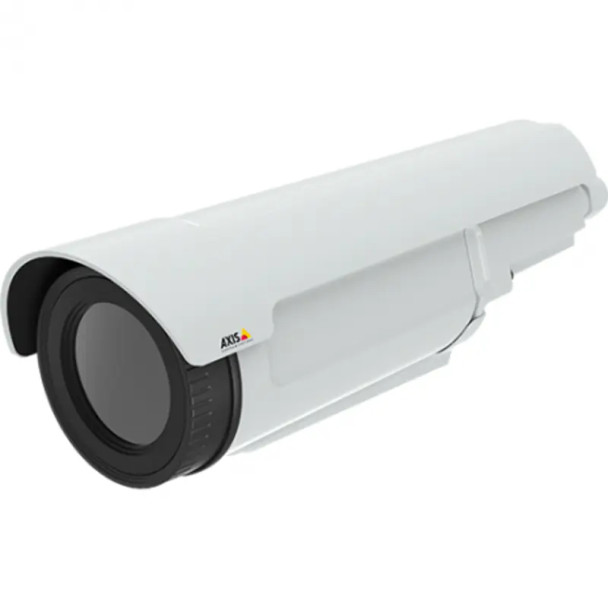

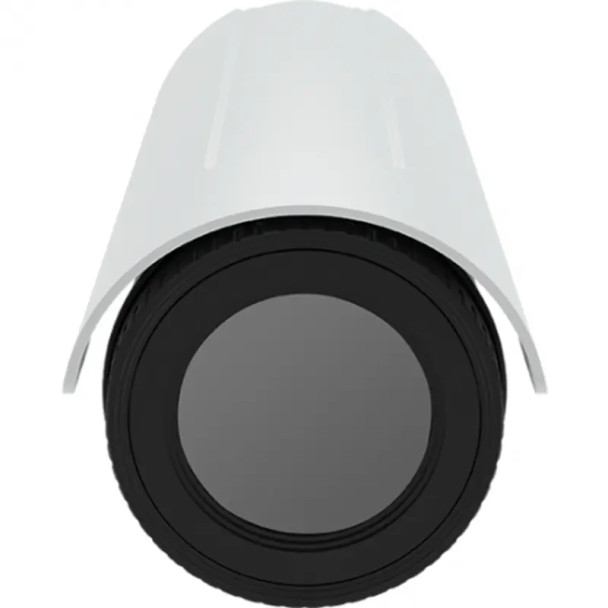

AXIS Q1941-E PT Mount 19 mm 30 fps Thermal IP Security Camera Wide thermal coverage with pan/tilt flexibility - 0979-001
The bullet-style, outdoor-ready AXIS Q1941-E PT Mount offers the possibility of mounting the camera on a pan/tilt motor to increase installation flexibility. The broad range of lenses make it easy to detect and verify people, objects and incidents from pitch dark areas to a sunlit parking lot. A noise filter gives improved thermal image contrast while keeping noise levels low, without adding blur and ghost effects. AXIS Q1941-E PT Mount withstands harsh weather conditions and has a built-in heater for the window. Additionally, it offers Power over Ethernet and has a microSD card slot.
Key Features:
- Superb image contrast, for more details
- Built-in analytics for high quality detection
- Electronic Image Stabilization
- Axis Zipstream technology
- Version for Positioning Units
Downloads
Datasheet
AXIS-0979-001-Datasheet-A1
Additional Information
|
Analytics:
|
Motion Detection
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
VAPIX
|
|
Compression:
|
H.264
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
309 x 105 mm (12.17 x 4.14 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Languages:
|
English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
13 Watts
|
|
Max. FPS and Resolution:
|
30fps at 384 x 288
|
|
Pixel Size (μm):
|
17
|
|
Power Supply:
|
8 to 28 VDC
PoE+ (IEEE802.3at)
|
|
Product Series:
|
AXIS Q19 Series
|
|
Protection Code:
|
IP66
NEMA 4X
|
|
RAM:
|
512MB
|
|
Special Technologies:
|
AXIS Fence Guard
AXIS Loitering Guard
AXIS Motion Guard
AXIS Perimeter Defender
AXIS Video Motion Detection
|
|
Specialized Camera Feature:
|
Thermal
|
|
Spectral Range (μm):
|
8 to 14
|
|
Technology:
|
Network (IP)
|
|
Thermal Aperture:
|
F1.23
|
|
Thermal Horizontal FOV:
|
19.4
|
|
Thermal Image Sensor:
|
Uncooled Micro Bolometer
|
|
Thermal Lens Size:
|
19mm
|
|
Thermal Resolution:
|
384 x 288
|
|
Thermal Sensitivity:
|
NETD <70 mK
|
|
Warranty:
|
5-year Manufacturer Warranty
|
