Description

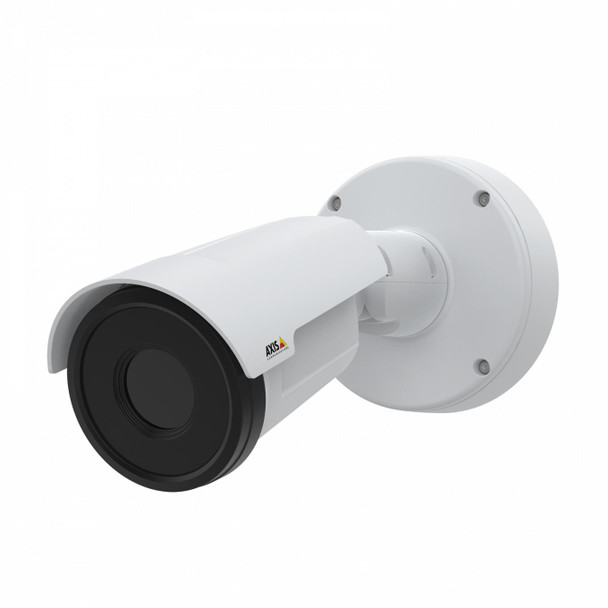

AXIS Q1952-E, 19 mm, 8.3 fps Impact-resistant anti-ligature Thermal IP Security Camera - 02159-001
AXIS Q1952-E delivers a high-resolution thermal video stream for reliable detection 24/7. Ideal for perimeter security, it includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. With a powerful analytics platform, it’s easy to add third-party analytics. Built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. AXIS Q1952-E also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Furthermore, this halogen-free, compact camera is robust and suitable even for harsh conditions.
Key Features:
- Reliable detection 24/7
- Built-in cybersecurity features
- Compact, robust, halogen-free design
- Support for AI-based analytics
- VGA with 640x480 thermal resolution
Replacement of:
0917-001
Downloads
Datasheet
AXIS-02159-001-Datasheet-A1
Additional Information
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
AAC-LC
G.711
PCM
G.726
ADPCM
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Certifications:
|
FCC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
132 x 272 mm (5.2 x 10.7 in)
|
|
Environmental:
|
Outdoor
|
|
Image Settings:
|
Brigthness
Contrast
Sharpness
Mirror
|
|
Material:
|
Poly-carbonate (PC)
Aluminum
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Pixel Size (μm):
|
17
|
|
Protection Code:
|
IP66
IP67
IK10
NEMA 4X
|
|
Special Technologies:
|
AXIS Motion Guard
AXIS Fence Guard
AXIS Loitering Guard
AXIS Video Motion Detection
AXIS Perimeter Defender
|
|
Specialized Camera Feature:
|
Thermal
|
|
Spectral Range (μm):
|
8 to 14
|
|
Technology:
|
Network (IP)
|
|
Thermal Aperture:
|
F1.23
|
|
Thermal Horizontal FOV:
|
31
|
|
Thermal Image Sensor:
|
Uncooled Micro Bolometer
|
|
Thermal Lens Size:
|
19mm
|
|
Thermal Resolution:
|
VGA (640 x 480)
|
|
Thermal Sensitivity:
|
NETD <30 mK
|
|
Warranty:
|
5-year Manufacturer Warranty
|
