Description

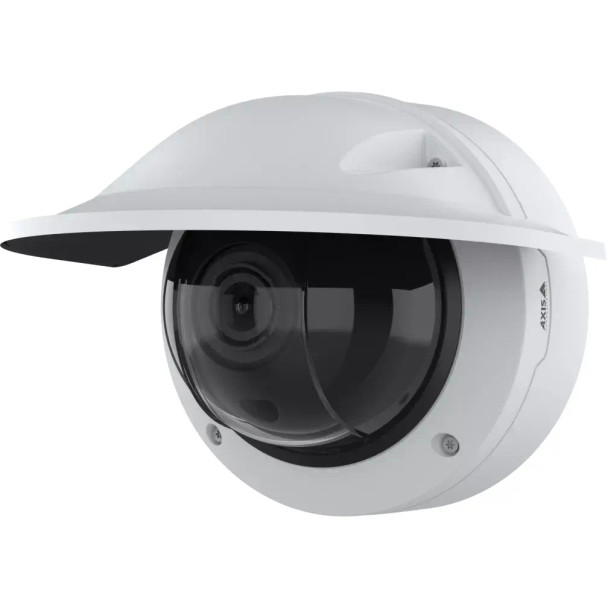

AXIS Q3558-LVE 8MP Outdoor Dome IP Security Camera with 6.3–13mm Lens, 2x Optical Zoom and Built-In IR – 03206-001
The AXIS Q3558-LVE is an advanced 8MP outdoor dome IP camera engineered for exceptional image quality, AI-based analytics, and robust environmental protection. Featuring a 6.3–13mm varifocal lens with 2x optical zoom, it delivers a horizontal field of view from 104° to 50°. With Axis OptimizedIR and an IR-shielded dome, it provides up to 30 meters of night vision without internal reflections. Built on the ARTPEC-9 platform, this camera supports edge-based analytics including AXIS Object Analytics, Scene Metadata, and Audio Analytics. Forensic WDR and Lightfinder 2.0 ensure clear imaging in high-contrast and low-light scenes, while Axis Edge Vault and secure boot provide hardware-level cybersecurity. The rugged IP66/IP69K and IK10-rated enclosure makes it suitable for harsh outdoor environments.
Key Features:
- 8MP resolution (3840 × 2160); supports 30fps streaming with Forensic WDR
- 6.3–13mm varifocal lens; horizontal field of view from 104° to 50°
- 2x optical zoom with P-Iris control and remote focus/zoom
- OptimizedIR; provides IR illumination up to 30 meters
- Lightfinder 2.0 and Forensic WDR (up to 120dB); ensures excellent image quality in low-light and high-contrast environments
- AI-powered analytics; includes AXIS Object Analytics, Audio Analytics, Scene Metadata, and Live Privacy Shield
- Axis Edge Vault; secure boot, signed video, and encrypted storage
- Triple stream encoding; supports AV1, H.265, H.264, and MJPEG formats
- Built-in microphone and support for two-way audio
- Edge storage with microSD card slot; encrypted recording supported
- IP66/IP69K and IK10-rated casing with NEMA 4X compliance
- Power via PoE (IEEE 802.3at Type 2); max power consumption 25.5W
- Operating temperature range from -50°C to 55°C
- ONVIF Profiles G, S, T, and M compliant; integrates seamlessly with major VMS platforms and Axis Camera Station
Downloads
Additional Information
Aperture:
|
F1.6
F2.9
|
Camera Style:
|
Dome
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
Ø175 mm × 148 mm (Ø6.9" × 5.7")
|
Environmental:
|
Outdoor
|
Iris:
|
P-iris
|
Lens Size:
|
6.3-13mm
|
Power Supply:
|
PoE (IEEE 802.3.at)
8 to 28 VDC
|
Protection Code:
|
IP66
IK10
NEMA 4X
IP6K9K
|
Resolution:
|
8MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/1.2"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
5% to 95% (non-condensing)
|
Storage Temperature:
|
-40 °C to 65 °C (-40 °F to 149 °F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
