Description

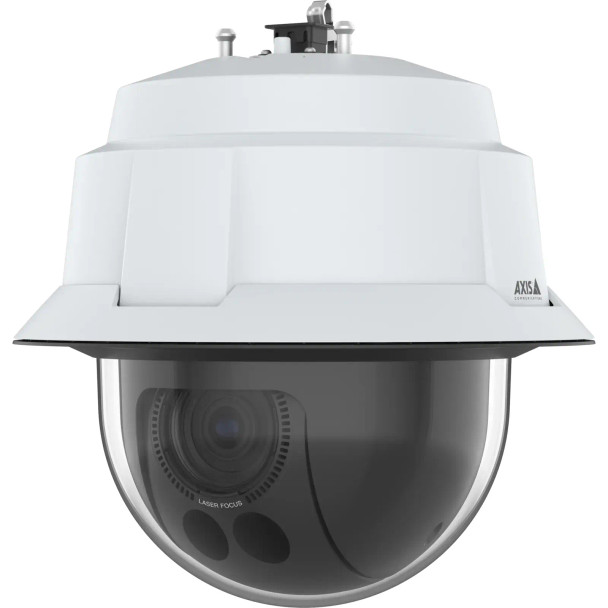

AXIS Q6086-E 4MP Outdoor PTZ IP Security Camera with 6.64-225.5mm Lens, 34x Optical Zoom and Built-In IR
The AXIS Q6086-E delivers exceptional surveillance performance with its highly light-sensitive 1/2" sensor and 34x optical zoom, making it ideal for monitoring large outdoor areas even in challenging lighting conditions. Built on the next-generation ARTPEC-9 chip, this camera supports advanced AI-powered analytics including AXIS Object Analytics for detecting and classifying humans, vehicles, and vehicle types. The Lightfinder 2.0 technology ensures outstanding image quality in near-darkness, while Forensic WDR provides up to 120 dB dynamic range for balanced imaging in mixed lighting scenarios.
Designed for demanding outdoor environments, this camera features IP66, IP67, IK10, NEMA 4X, and NEMA TS2 ratings for superior weather and impact resistance. The laser focus system enables rapid and accurate focusing even in low-light or low-contrast scenes. With support for AV1, H.265, and H.264 compression along with Axis Zipstream technology, it significantly reduces bandwidth and storage requirements. The built-in Axis Edge Vault cybersecurity platform provides hardware-based protection to safeguard your device and sensitive information from unauthorized access.
Key Features:
- 4MP resolution with highly light-sensitive 1/2" progressive scan RGB CMOS sensor; enables detailed imaging in challenging lighting conditions
- 34x optical zoom with 6.64-225.5mm varifocal lens (F1.7-5.1 aperture); provides flexible coverage from wide overview to zoomed-in detail
- Lightfinder 2.0 and Forensic WDR (120 dB) technologies; deliver exceptional low-light performance and balanced images in high-contrast scenes
- ARTPEC-9 SoC with deep learning processing unit; supports next-generation AI analytics including object detection and classification
- Laser focus system with autofocus and P-iris control; ensures rapid, accurate focusing even in low-light or low-contrast conditions
- IP66, IP67, IK10, NEMA 4X, and NEMA TS2 ratings; withstands harsh weather, impacts, and extreme temperatures from -50°C to 55°C
- AV1, H.265, and H.264 compression with Axis Zipstream; significantly reduces bandwidth and storage costs while maintaining image quality
- Built-in Axis Edge Vault cybersecurity platform; provides hardware-based security with secure boot, encrypted filesystem, and signed firmware
- Up to 20 configurable video streams with 50/60 fps in all resolutions; enables flexible viewing and recording scenarios
- Includes 90W Midspan, weathershield, and RJ45 Push-pull Connector; ready for immediate outdoor installation with PoE++ power
Downloads
Popular Search
Additional Information
|
Aperture:
|
F1.7
F5.1
|
|
Camera Style:
|
PTZ
|
|
Compliance:
|
TAA Compliant
|
|
Compression:
|
H.264
H.265
AV1
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
9.06x13.39x9.06in
|
|
Lens Size:
|
6.64~225.5mm
|
|
Lens Type:
|
Motorized Varifocal Lens
|
|
Minimum Illumination (B/W):
|
0.005 lux at 30 IRE, F1.7
|
|
Minimum Illumination (Color):
|
0.07 lux at 30 IRE, F1.7
|
|
Optical Zoom:
|
34x Optical Zoom
|
|
Power Supply:
|
PoE++ (IEEE 802.3bt)
|
|
Protection Code:
|
IP66
IP67
IK10
NEMA 4X
NEMA TS-2
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/2"
|
|
Sensor Type:
|
RGB CMOS
|
|
Storage Humidity:
|
5-95% RH (non-condensing)
|
|
Storage Temperature:
|
-40°C to 65°C (-40°F to 149°F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5 Year Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120 dB
|
