AXIS Q8742-LE Zoom 30fps 24V Thermal Bispectral PTZ IP Security Camera, Built-in IR Illuminator - 01019-001

Brand: AXIS
Part Number: 01019-001
Write a Review
Check other similar products:
Discontinued
  • AXIS Q8742-LE Zoom 30fps 24V Thermal Bispectral PTZ IP Security Camera, Built-in IR Illuminator - 01019-001 - 1
  • AXIS Q8742-LE Zoom 30fps 24V Thermal Bispectral PTZ IP Security Camera, Built-in IR Illuminator - 01019-001 - 2
  • AXIS Q8742-LE Zoom 30fps 24V Thermal Bispectral PTZ IP Security Camera, Built-in IR Illuminator - 01019-001 - 3 Years Warranty

? Help me pick a security camera

?? Connect Your Axis Camera to YouTube

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : MJPEG, H.264,
  • Max. FPS and Resolution : 30fps at 640 x 480
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 35~105mm Lens
  • Sensor Type : Thermal Sensor
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : NEMA 4X
  • Color : White
  • Environmental : Outdoor

Description

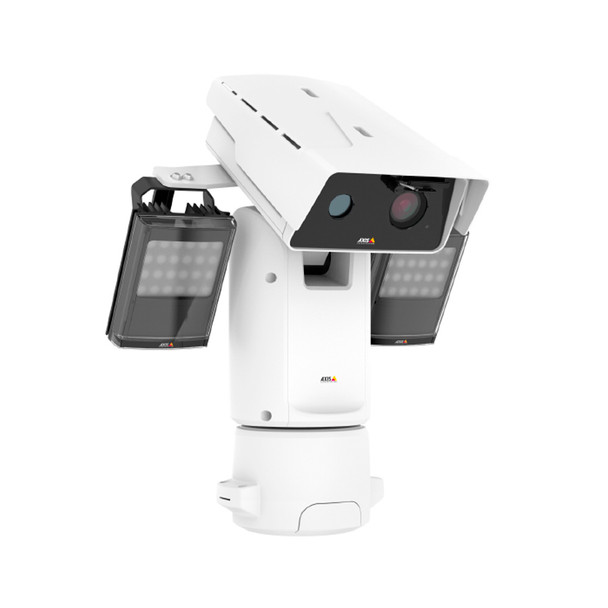

AXIS Q8742-LE Zoom 30fps 24V Thermal Bispectral PTZ IP Security Camera 01019-001

A winning combination

AXIS Q8742-LE gives you two excellent cameras in one: a thermal camera with outstanding contrast in 640x480 resolution for reliable detection and verification around-the-clock and in all weather and light conditions. And an exceptionally light-sensitive visual camera in HDTV 1080p with integrated 30x optical zoom for identification purposes. The visual camera also has Wide Dynamic Range - Forensic Capture for clarity and detail in scenes with both dark and light areas. And Focus recall for instant focus in areas you define. Moreover, AXIS Q8742-LE Zoom offers 3x thermal zoom for mission critical usage, such as detecting long distance vehicles.


Swift, smooth 360° coverage

AXIS Q8742-LE lets operators choose between really slow or super-fast pan (from 0.05 to 120 degrees per second) and tilt movement (from 0.05 to 65 degrees per second). So, they get smooth and jerk-free panoramic viewing when they need it and can respond quickly to events. The camera can be column-mounted, on poles or walls for a 360° panoramic view and a ground-to-sky view from -90° to +45°. It can withstand high winds when it's standing still and winds of up to 40-meter per second (90 mph) when it's in motion. And an SFP slot means it supports long-distance fiber-optic connection.


Single-unit savings

AXIS Q8742-LE is a highly cost-effective solution. You need just one camera and one IP address to benefit from long-distance thermal detection, visual identification and PTZ capabilities. Which means lower purchase, installation and operational costs. The positioning camera is equipped with powerful IR LED illuminators for sharp video in complete darkness up to 500 meters (1640 feet) without diverging lens. The illuminators are long-range and long lasting, making AXIS Q8742-LE the right choice for surveillance where there are few or no light sources. Thanks to built-in optical IR-cut and IR-pass filters, the visual stream provides superior image quality even in challenging mixed lighting conditions. In addition, Axis Zipstream technology reduces storage and bandwidth needs with up to 50% or more while ensuring that important details are captured in full image quality.


Fast and easy

Its slim design and many available accessories let you install it anywhere you want. It has an SFP slot, so it supports cost-effective, long-distance fiber-optic connection. And maintenance is made simple by a remote-control cleaning system that features long-life wipers. A 22 meter (72 feet) long, heavy-duty power cable is available as optional accessory. Designed for outdoor use, the cable has 3-wire, 12AWG and a jacket diameter of 10 mm (0.4 in).


Axis Zipstream Technology

Finally, Axis' Zipstream technology lowers bandwidth and storage requirements by an average of 50%, while preserving high-quality images: Scenes containing interesting details are recorded in full image quality and resolution while other areas are filtered out, to optimally use available bandwidth and storage.


initComparisons();

WDR - Forensic Capture

Axis' WDR - Forensic Capture optimizes video for forensic purposes by enabling an extremely high level of detail to be visible in both dark and bright areas of a scene. It is the result of years of development at Axis combined with the best imaging components on the market. An Axis camera with WDR - Forensic Capture applies advanced algorithms to optimize image quality and includes the ability to seamlessly transition between WDR and low-light mode.

Key features:

  • Uncooled micro bolometer 640x480 pixels
  • 35~105mm Athermalized lens
    • Near pre-focused distance: 22-195 m (72-640ft)
    • Near manual focus distance: 7 m (23ft)
    • Horizontal field of view: 18°-6°
    • Vertical field of view: 13,5°-4.5°
  • 3x thermal zoom and 4x digital zoom, total 12x zoom
  • 1/2.8″ progressive scan CMOS
  • NETD < 50 mK
  • Reliable detection, fast verification and identification
  • Bispectral video streams
  • Easy to install with one IP address
  • Responsive positioning 360° endless pan and 135° from ground to sky
  • Long-distance network connection
  • Support for microSD/microSDHC/microSDXC card (included)
  • Arctic Temperature Control: start-up at -40 °C (-40 °F)
  • Weatherproof IP66- and NEMA 4X-rated powder coated aluminum
  • True WDR 120dB
  • ONVIF
Focal length Viewing angle Detection
mm Horizontal Human:
1.8 x 0.5 m
Vehicle:
4 x 1.5 m
AXIS Q8742-LE 35 mm m yards m yards
Detection (1.5 pixels on target)
35 17° 1079 1179 3307 3617
Recognition (6 pixels on target)
35 17° 270 295 727 904
Identification (12 pixels on target)
35 17° 135 147 413 452
Focal length Viewing angle Detection
mm Horizontal Human:
1.8 x 0.5 m
Vehicle:
4 x 1.5 m
AXIS Q8742-LE (35-105 mm) m yards m yards
Detection (1.5 pixels on target)
35-105 18°-6° 1079 1179 3307 3617
Recognition (6 pixels on target)
35-105 18°-6° 270 295 727 904
Identification (12 pixels on target)
35-105 18°-6° 135 147 413 452

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Additional Features:
Mobile App Support (IOS, Android) 360-degree Hemispheric View
Alternative SKUs:
Q8742-LE
Analytics:
Motion Detection
Camera Style:
PTZ
Color:
White
Compatible Integration (API):
ONVIF
Compliance:
NDAA Compliant
Compression:
MJPEG H.264
Durability:
Weatherproof
Environmental:
Outdoor
Lens Size:
35~105mm
Lens Type:
Motorized (Automatic Zoom) Lens
Max. FPS and Resolution:
30fps at 640 x 480
Night Vision Type:
Night Vision (IR)
Optical Zoom:
30x Optical Zoom
Product Series:
AXIS Q87 Series
Protection Code:
NEMA 4X
Resolution:
VGA (640 x 480)
SD Card Support:
SD Card Supported
Sensor Size:
1/2.8"
Sensor Type:
Thermal Sensor
Special Technologies:
AXIS Zipstream
Specialized Camera Feature:
Thermal
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
