Bosch DVR-630-16A100 16ch DVR Digital Video Recorder (1TB)

Bosch DVR-630-16A100 16-channel 1TB Digital Video Recorder

The Bosch DVR-630-16A100 16-channel 1TB Digital Video Recorder makes use of the H.264 compression technology that reduces the size of video files without dulling out the quality. Besides delivering images of a resolution up to 1440 x 900 pixels, it also features search and playback functions allowing easy access to the recorded videos. It can record multiple video and audio signals and also lets you make use of the live multi-screen viewing and playback simultaneously. Thanks to the Control Center PC software, it allows you to control the DVR over a network.

Its built-in web application allows for live viewing, playback and configuration. This digital video recorder enables authenticity check for both local and remote playback while maintaining the integrity of the recording. The built-in archive player makes it easy for you to view secure video files and the Real Time Streaming Protocol (RTSP) configures the suitable mobile devices. It also displays live video streamed by the DVR over the Internet. The Bosch DVR-630-16A100 16-channel 1TB Digital Video Recorder features two monitor outputs that offer full-screen, quad and multi-screen viewing modes.

Key Features:

• Embedded Design: for minimizing maintenance and operational costs
• 1TB Storage: allows good amount of space for saving the recorded footages

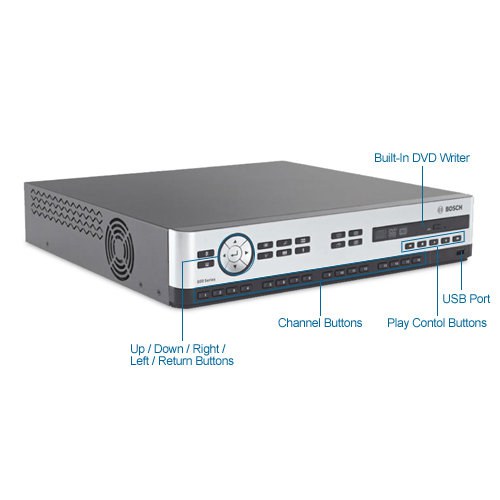

• USB Port: allows for the use of a flash drive to store videos&
• Rear Panel: with looping auto-terminating video inputs and outputs, audio inputs and outputs and alarm inputs and outputs
• Control Center PC Software: enables easy control of the DVR over a network
• On-screen Display Menu: for easy operation and programming of the DVR

Bosch DVR-630-16A100 16-channel 1TB Digital Video Recorder Specifications

• Operating system: Windows XP, Windows Vista or Windows 7
• Web browser: Internet Explorer 7, 8 or 9
• Processor: Intel Core Duo 2.0GHz or comparable
• RAM memory:2048 MB
• Free disk space: 10 MB
• Graphics card: NVIDIA GeForce 8600 or better
• Video memory: 256 MB
• Network interface: 10/100-BaseT
• External power adapter AC input: 110-240 VAC; 50/60 Hz; 1.8 A
• External power adapter DC output: 12VDC; 5 A
• DVR Power input: 12VDC; 3.5 A; 145 BTU/h
• Inputs: Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
• AGC: Automatic gain adjustment for each video input
• Hard Disks: Supports up to 2 SATA hard drives maximum 2TB each
• Record Rate (IPS) NTSC: Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
• Record Rate (IPS) PAL: Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
• Recording Quality: Best, High, Normal, Low, Lowest
• Average Recording Capacity CIF, Normal, 25/30 IPS: PAL-138 hours, NTSC-170 hours
• Average Recording Capacity CIF, Normal, 6.25/7.5 IPS: PAL-350 hours, NTSC-425 hours
• Average Recording Capacity 2CIF, Normal, 12.5/15 IPS: PAL-115 hours, NTSC-144 hour
• Average Recording Capacity 4CIF, Normal, 6.25/7.5 IPS: PAL- 93 hours, NTSC-115 hours
• Maximum recording rates Local 16 channels 4CIF: PAL-6 IPS, NTSC-7.5 IPS
• Maximum recording rates Local 16 channels 2CIF: PAL-12.5 IPS, NTSC- 15 IPS
• Maximum recording rates Local 16 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 8 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 4 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Remote (network) 16 channels CIF: PAL-6.75 IPS, NTSC-7.5 IPS
• Remote (network) 8 channels CIF: PAL-12.5 IPS, NTSC-15 IPS
• Video Outputs Monitor: A-VGA RGB, Monitor B-VGA RGB
• Live Resolution (Mon.A): 800x600 (4:3), 1024x768 (4:3), 1280x1024 (5:4), 1366x768 (16:9), 1440x900 (16:10)
• Digital Zoom: 2 times
• Streaming video: H.264 compression
• Audio Inputs: Mono RCA, 1.0 Vpp
• Audio Output: Mono RCA, 1.0 Vpp
• Compression: ADPCM
• Sample rate: 16 kHz per channel
• Bit rate: 8-bit
• Inputs: 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
• Outputs: 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
• RS485: Output signals according to RS485, max. signal voltage -8 to +12 V
• RS485 Support: Bosch domes, and Pelco P and D
• Video Inputs: 8 or 16 looping BNC, auto termination
• Monitor: 2 VGA D-SUB
• Alarm connectors: Screw terminal inputs, cable diameter AWG26‑16 (0.13-1.5 mm)
• Audio Inputs: 4 RCA (CINCH)
• Audio Output: 2 RCA (CINCH)
• Ethernet: RJ45, 10/100 BaseT according to IEEE802.3
• RS485: Screw terminal output, cable diameter AWG28‑16 (0.08-1.5 mm)
• USB 2.0: One front and one rear USB connector for mouse or USB memory device
• Display Modes Monitor A: Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
• Display Modes Monitor B: Full, quad, multi-screen, full sequence, alarm call-up (live)
• Normal partition: Continuous recording (with or without overwriting)
• Event partition: Input and motion recording (with or without overwriting)
• Dimensions (WxDxH): 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
• Weight: 4.3 kg (9.46 lb) approx.
• Temperature Operating: +0°C to +40°C (+32°F to +104°F)
• Temperature Storage: -40°C to +70°C (-40°F to +158°F)
• Humidity Operating: <93% non-condensing
• Humidity Storage: <95% non-condensing
