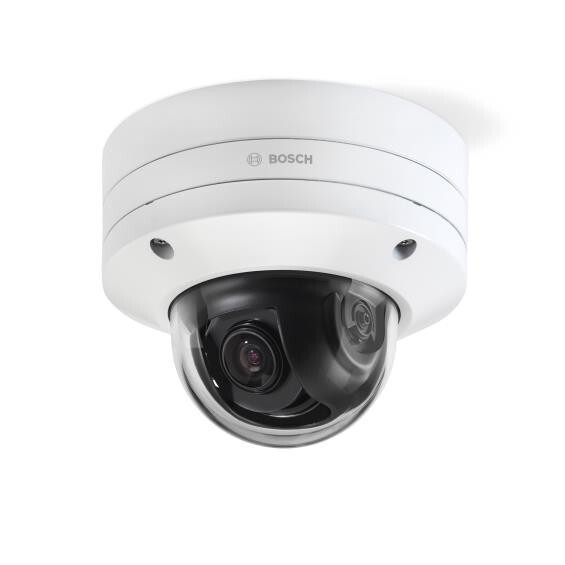

Bosch NDE-8512-R 2MP Outdoor PTRZ IP Security Camera

Brand: Bosch
Part Number: NDE-8512-R
Write a Review
New Product!

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, MJPEG,
  • Field of View (Horizontal) : 117°Field of View 59°Field of View
  • Max. FPS and Resolution : 60fps at 1920 x 1080
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 3~9mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Max. Storage Capacity : 2 TB Storage Capacity
  • Protection Code : IK10 Plus IP66 IP6K9K NEMA 4X
  • Color : White
  • Material : Aluminum Poly-carbonate PC
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"
  • Aperture : F1.2 F2.3
  • IR Corrected : IR Corrected


Bosch NDE-8512-R 2MP Outdoor PTRZ Network (IP) Security Camera

The FLEXIDOME IP starlight 8000i - 2MP performance line camera offers starlight performance and High Dynamic Range with 1080p resolution to provide crisp and highly detailed images even in extreme low-light situations. The camera’s remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.

Key Features

  • Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
  • Starlight technology provides highly detailed images in extreme low-light situations
  • High Dynamic Range to see every detail in both bright and dark areas of the scene
  • Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
  • Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects


Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Alarm Input:
2 Channel
Alarm Output:
1 Channel
F1.2 F2.3
Audio Capability:
Two-Way Audio
Audio Compression:
AAC-LC G.711 L16
Audio Input:
1x Channel
Audio Output:
1x Channel
Audio S/N Ratio (dB):
Built-in Analytics:
Built-in Analytics
Camera Style:
UL Listed
Compatible Integration (API):
ONVIF Profile G ONVIF Profile M ONVIF Profile S ONVIF Profile T
Connection Type:
Auto Day (Color) Night (B/W)
Detect (ft):
419 950
175 x 148 mm (6.9 x 5.7 in)
Vandal Proof Weatherproof
Field of View (Horizontal):
117 59
IR Corrected:
IR Corrected
Identify (ft):
44 100
Lens Size:
Lens Type:
Motorized (Automatic Zoom) Lens
Aluminum Poly-carbonate PC
Max Power Consumption:
16 Watts
Max. FPS and Resolution:
60fps at 1920 x 1080
Max. Storage Capacity:
2 TB
Minimum Illumination (B/W):
0.0011 Lux
Minimum Illumination (Color):
0.007 Lux
Surface Mount
NDAA Compliance:
NDAA Compliant
Network Interface:
1x RJ-45
Noise Reduction:
Intelligent DNR
Observe (ft):
176 400
Operating Humidity:
5% to 100 RH (condensing)
Operating Temperature:
-50 °C to 60 °C (-58 °F to 140 °F)
Power Supply:
12 VDC 24 VAC PoE (IEEE 802.3af) PoE+ (IEEE802.3at Class 4)
Product Series:
Bosch FLEXIDOME IP starlight 8000i - 2MP X Series
Protection Code:
IK10 Plus IP66 IP6K9K NEMA 4X
Recognize (ft):
88 200
S/N Ratio:
>55 dB
SD Card Support:
SD Card Supported
Sensor Size:
Sensor Type:
Shutter Speed:
Special Technologies:
Camera Trainer HDR X IVA (Intelligent Video Analytics) Starlight X Ultra Low Light
Specialized Camera Feature:
PTRZ Camera Remote PTRZ
Surge Protection:
1 kV
Network (IP)
Wide Dynamic Range (WDR):
WDR 144dB
