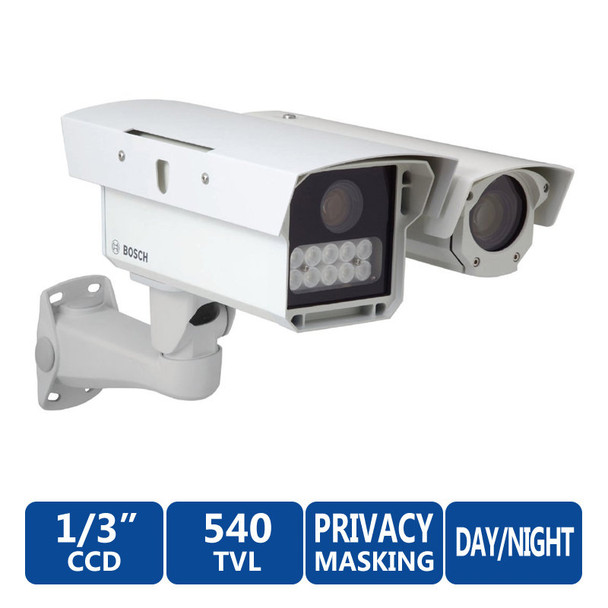

Bosch VER-D2R4-2 DINION License Plate Capture (LPR) IP Security Camera

Hover on image to enlarge

Description

Bosch VER-D2R4-2 DINION License Plate Capture (LPR) IP Camera

The Bosch VER-D2R4-2 DINION License Plate Capture IP Camera is a dinion capture 7000 dual license plate reader with led camera, 37-64ft capture range, and NTSC w/bracket. It is a specialty camera designed to record consistent, high-quality images of vehicle license plates. It is ideal for monitoring parking lots, public areas and for controlling vehicle access. It overcomes the problems encountered in vehicle identification and automatic license plate recognition applications. The overview camera provides a complete vehicle image in tandem with the plate image for positive vehicle identification.

The Night Capture Imaging System delivers a burst of infrared illumination and simultaneously filters out visible light to ensure clear license plate images in complete darkness while eliminating the negative effects of headlight glare. Advanced Ambient Compensation minimizes plate overexposure from sunlight for more accurate automatic license plate recognition. Adjustable imaging modes allow for fine-tuning the imager for specific regions or license plate recognition algorithms. It has a 1/3inch CCD monochrome lens, a horizontal resolution of 540 TVL, privacy masking, dynamic noise reduction, 20bit image processing and 6 preset programmable modes. Its 2X technology produces clear, consistent and accurate plate images. The IP67 rated compliant, weather sealed aluminum housing keeps dust and water at bay, allowing you to mount the camera outdoors without having to worry about its components getting corroded. The Bosch VER-D2R4-2 DINION License Plate Capture IP Camera is a perfect day/night surveillance solution.

& &

Key Features of The Bosch VER-D2R4-2 DINION License Plate Capture (LPR) IP Camera

Night Capture Imaging: records clear pictures of license plates even at night
Automatic Mode Switching: allows quick change in the recording mode as per the ambient light
Advanced Ambient Compensation: prevents washed out images by automatically correcting overexposure
20-bit Image Processing: records detail in both bright highlights and deep shadows
Bilinx Technology: allows bi-directional communication and enables you to change settings
Adjustable Imaging Modes: configures according to regional specifications for license plates

bosch ver-d2r4-2 dinion license plate capture ip camera

Features

Manufacturer:

Bosch

Product Type:

Cameras

Warranty:

3-year Manufacturer Warranty

Discontinued:

Security Camera Features

Camera Style:

Bullet

Technical Specs

Bosch VER-D2R4-2 DINION License Plate Capture IP Camera Specifications

Operational Range: 3.8 to 28.0 m (12.5 to 92.0 ft)
IR Illumination: Pulsed LED array, 850 nm
Nominal Plate Width: North America: 110 pixels, Europe: 130 pixels (with 4CIF encoding at optimal capture distance)
Usable Plate Width: North America: 80–140 pixels, Europe: 100–170 pixels (with 4CIF encoding over capture range)
Maximum Capture Speed: 225 km/h (140 mph), Must meet 30° mounting criteria.
Automatic Mode Switching: Adjustable switch point depending on ambient light levels, mode selectable
Type: 1/3-inch CCD, monochrome
Active Pixels (PAL): 752 x 582
Active Pixels (NTSC): 768 x 494
Horizontal Resolution: 540 TVL
Video Output: Composite video 1 Vpp, 75 ohm
Synchronization: Internal only
Auto Black: Automatic continuous, Off
Dynamic Range: 120 dB (20-bit image processing)
Dynamic Noise Reduction: Auto, On/off selectable
Sharpness: Sharpness enhancement level selectable
AGC: AGC On or Off (0 - 30 dB) selectable
Cable Compensation: Up to 1000 m (3000 ft) coax without communication)
Camera ID: 17 character editable string, position selectable
Test Pattern Generator: Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane
Modes: 6 preset programmable modes
Remote Control: Bilinx coaxial bi-directional communication
Video Motion Detection: One area, fully programmable
Privacy Masking: Four independent areas, fully programmable
Controls: OSD operation (multi-lingual)
Lens: 5-50 mm varifocal, calibrated to optimal capture distance
Sensitivity Color Full video (100 IRE): 2.4 lx (0.223 fc)
Sensitivity Color Usable picture (50 IRE): 0.47 lx (0.044 fc)
Sensitivity Color Usable picture (30 IRE): 0.15 lx (0.0139 fc)
Color + SensUp 10x Full video (100 IRE): 0.24 lx (0.0223 fc)
Color + SensUp 10x Usable picture (50 IRE): 0.047 lx (0.00437 fc)
Color + SensUp 10x Usable picture (30 IRE): 0.15 lx (0.0139 fc)
Monochrome Full video (100 IRE): 0.98 lx (0.091 fc)
Monochrome Usable picture (50 IRE): 0.188 lx (0.0174 fc)
Monochrome Usable picture (30 IRE): 0.060 lx (0.0056 fc)
Monochrome + SensUp 10x Full video (100 IRE): 0.098 lx (0.0091 fc)
Monochrome + SensUp 10x Usable picture (50 IRE): 0.019 lx (0.00176 fc)
Monochrome + SensUp 10x Usable picture (30 IRE): 0.060 lx (0.00557 fc)
Horizontal Resolution: 520 TVL
Signal-to-Noise Ratio: >50 dB
Video Output: Composite video 1 Vpp, 75 ohm
Synchronization: Synchronized to pulsed infrared for night mode
Shutter: Auto (1/50 [1/60] to 1/10000) selectable, Auto (1/50 [1/60] to 1/50000) automatic flickerless, fixed selectable
Sensitivity Up: Adjustable from Off up to 10x
Day/Night: Color, Mono, Auto
Auto Black: Automatic continuous, Off
Dynamic Engine: XF-Dynamic, 2X-Dynamic, SmartBLC
Dynamic Range: 120 dB (20-bit image processing)
Dynamic Noise Reduction: Auto, On/off selectable
Sharpness: Sharpness enhancement level selectable
SmartBLC: On (includes 2X-Dynamic ) / Off
AGC: AGC On or Off (0 – 30 dB) selectable
Peak White: Invert On/Off
White Balance: ATW, ATWhold and manual (2500 to 10000K)
Cable Compensation: Up to 1000 m (3000 ft) coax without external amplifiers (automatic set-up in combination with Bilinx coaxial communication
Camera ID: 17 character editable string, position selectable
Test Pattern Generator: Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane
Modes: 6 preset programmable modes
Remote Control: Bilinx coaxial bi-directional communication
Video Motion Detection: One area, fully programmable
Privacy Masking: Four independent areas, fully programmable
Controls: OSD operation (multi-lingual)
Lens: 5-50 mm IR corrected varifocal, calibrated for vehicle overview capture
Input Voltage: 11-30 VDC or 24 VAC ±10%
Power Consumption: All Models- 36 W, maximum, 12 VDC- 32 W, typical at –40°C (–40°F)/17 W, typical at 20°C (68°F), 24-VAC 28 W, typical at –40°C (–40°F)/13 W, typical at 20°C (68°F)
Power: 2-wire flying lead
Video and Control: 2 BNC connectors, one for each camera
Weatherproofing: IP 67, Type 4X (NEMA 4X)
Operating Temperature: –40°C to +50°C (–40°F to 122°F)
Storage Temperature: –40°C to +70°C (–40°F to 158°F)
Cold Start-up Temperature: –40°C (–40°F), typically requires a 15-minute warm up prior to operation
Operating/Storage Humidity: 0% to 100% relative, condensing
Wind Load: 144 km/h (90 mph)
Dimensions (H x W x L): 350 x 269 x 139 mm, (13.8 x 10.6 x 5.5 in.), housing with sunshield only
Weight: 6 kg (15 lb)
Construction Material Housing: Robust, weather sealed aluminum casting and extrusion
Construction Material Window: Borosilicate
Color: Bosch White
Finish: All-weather coating
Bracket: Wall mount included
