Description

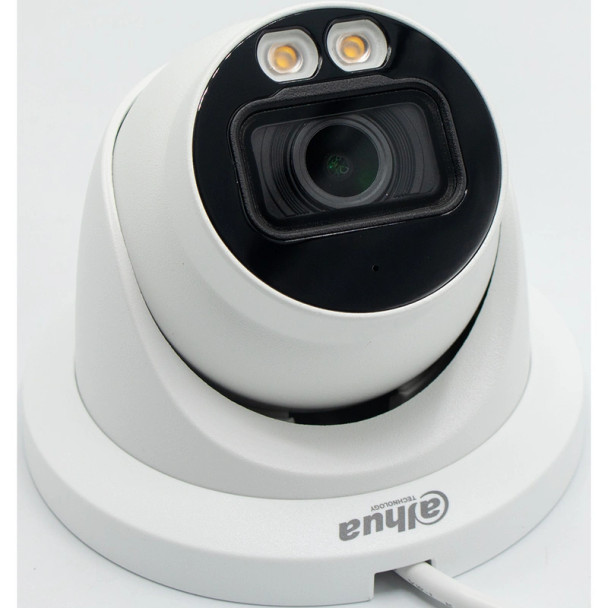

Dahua N45EJN2 4MP Night Vision Outdoor Eyeball ePoE IP Security Camera
The Dahua 4 MP Night Color 2.0 ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
WizMind Series devices offer the full complement of Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products deliver perimeter protection, vehicle and crowd density statistics, video metadata, and advanced people counting with heat map functionality. WizMind is ideal for complex applications with demanding requirements that need advanced analytic capabilities.
Key Features:
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+ and Smart H.264+ Video Compression
- 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
- Ultra Wide Dynamic Range (140 dB)
- Built-in Microphone
- Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
- Night Color Technology with White-light LEDS for Color Images in Total Darkness
- Enhanced Power and Data Transmission Distances (ePoE)
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- 5-year Warranty (for products sold through an authorized Dahua dealer)
Compatible products
Additional Information
|
Analytics:
|
Analytics+ Function
Smart Motion Detection+
Advanced People Counting
Face Detection
Perimeter Protection
|
|
Aperture:
|
F1.0
|
|
Audio Compression:
|
G.711a
G.711Mu
G.726
G.723
PCM
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Eyeball
|
|
Compatible Integration (API):
|
CGI Conformant
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
Milestone
P2P
|
|
Compression:
|
H.265 Plus
H.265
H.264 Plus
H.264
H.264B
H.264H
MJPEG
AI Coding
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
Night (B/W)
|
|
Detect (ft):
|
190.9
|
|
Dimensions:
|
106 x 99.20 mm (4.17 x 3.91 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
107
|
|
IR LED Quantity:
|
2
|
|
Identify (ft):
|
19
|
|
Iris:
|
Fixed Iris
|
|
LED Indicator:
|
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
2.2 Watts
7.9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (Color):
|
0.0005 lux
|
|
Mounting:
|
Wall Mount
Pole Mount
Ceiling Mount
Corner Mount
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
65
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
76.4
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
ePoE
|
|
Product Series:
|
Dahua WizMind Series
Dahua ArcticPro Series
Dahua Pro Series
|
|
Protection Code:
|
IP67
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
38.1
|
|
Remote Users:
|
Up to 20
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Dahua Night Color 2.0
Dahua Night Color Technology
|
|
Specialized Camera Feature:
|
Extreme Weather Temperatures
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
|
ePoE Technology:
|
ePoE Technology
|
