Description

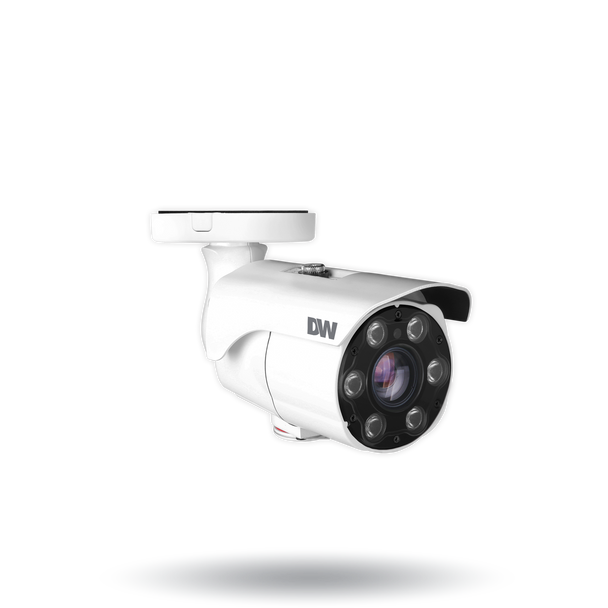

Digital Watchdog DWC-MB44LPRWC1T 4MP Night Vision Outdoor Bullet LPR IP Security Camera with 6~50mm Motorized Lens and 1TB Storage, CaaS
MEGApix® CaaS™ all-in-one series of IP cameras combine the cameras with the ease and power of DW Spectrum® IPVMS and onboard storage options at 512GB or 1TB provide up to 60 days of retained video. DW Spectrum IPVMS server is pre-installed and licensed. No additional server hardware is required.
The 4MP License Plate Recognition (LPR) camera is engineered to capture license plates of moving vehicles in extreme light conditions, from ranges of up to 60’ at up to 50mph. Combine the CaaS™ solution with the Blackjack® NAS device for long-term storage needs.
Key Features:
- All-in-one cameras, no server required
- 4MP 1/3” image sensor at real-time 30fps
- 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
- License plate recognition technology captures reflective license plates up to 50mph with up to 60’ capture range
- Reliable performance under any lighting conditions
- Built-in 512GB/1TB storage options for up to 60 days retained video*
- Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix® CaaS™ edge cameras
- Dual recording option with Blackjack® NAS appliance
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Cold start -40°F (-40°C)
- 60’ Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
Replacement of:
DWC-MB44LPRC1T
Downloads
Quick Start Guide
Digital-Watchdog-DWC-MB44LPRWC1T-Quick-Start-Guide-A1
User Manual
Digital-Watchdog-DWC-MB44LPRWC1T-User-Manual-A1
Popular Search
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
External Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Captures license plates up to (mph):
|
50
|
|
Certifications:
|
FCC
RoHS
UL Listed
CE
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
247.2 x 96.7 mm (9.73 x 3.8 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
90
7.3
|
|
Focus:
|
Auto Focus
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Internal Storage:
|
1 TB
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
6~50mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
12.9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.26 Lux
|
|
Mounting:
|
Corner Mount
Pole Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
140
|
|
Night Vision Type:
|
Night Vision (IR)
Smart IR
|
|
Noise Reduction:
|
Smart DNR
3D DNR
|
|
Optical Zoom:
|
8.3x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Digital Watchdog MEGApix CaaS series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
4MP
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Specialized Camera Feature:
|
Extreme Weather Temperatures
All-in-One Camera
License Plate Recognition (LPR)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
