Description

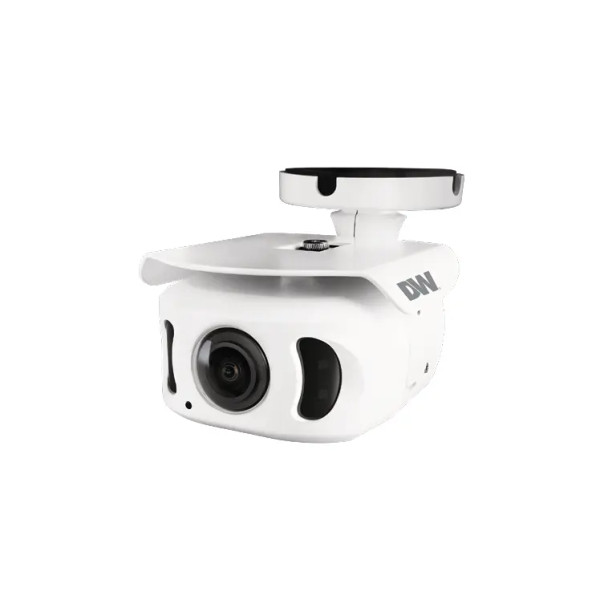

Digital Watchdog DWC-MBW8Wi2TX 8MP Outdoor Bullet IP Security Camera with 2.3mm Lens and Built-In IR
The Digital Watchdog DWC-MBW8Wi2TX is an NDAA-compliant 8MP bullet IP camera engineered to deliver edge-to-edge clarity and full situational awareness with its ultra-wide 2.3mm lens. Designed for real-time 4K video streaming at 30fps, the camera leverages Star-Light Plus™ technology to ensure vivid color capture in near-total darkness and Smart IR for up to 100 feet of black-and-white night vision. Featuring an advanced IVA analytics engine, it offers video content analysis tools such as intrusion, counting, line crossing, and more. Its rugged IP67-rated housing makes it suitable for outdoor deployments in challenging environments, while PoE and DC12V options support flexible installations.
Key Features:
- 8MP resolution at 30fps; delivers ultra-high-definition video for detailed monitoring
- 2.3mm ultra-wide lens; provides a 175° horizontal field of view for full scene coverage
- Smart IR with 100ft range; ensures night visibility without external lighting
- Star-Light Plus™ technology; captures color video in near-total darkness
- True WDR at 120dB; balances lighting in high-contrast scenes
- IVA analytics engine; includes intrusion, loitering, counting, tailgating, and more
- Smart DNR™ 3D noise reduction; improves image clarity in low-light motion
- Two-way audio; enables live communication via built-in audio I/O
- MicroSD card slot; supports edge recording in case of network loss
- Alarm I/O support; allows integration with external sensors and control devices
- Dual-streaming; supports H.265, H.264, and MJPEG for bandwidth optimization
- Web-based configuration; accessible from Chrome, IE, and Firefox
- PoE and 12VDC power input; simplifies cabling and installation
- IP67-rated housing; protects against water and dust for outdoor use
- NDAA compliant; suitable for government and regulated projects
- 5-year warranty; ensures long-term reliability and support
Downloads
Additional Information
|
Aperture:
|
F2.8
|
|
Camera Style:
|
Bullet
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
127.9 mm × 222.5 mm × 96.7 mm (5.03" × 8.75" × 3.8")
|
|
Durability:
|
Weather Resistant
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.3mm
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Protection Code:
|
IK09
IP67
|
|
Resolution:
|
8MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
10% to 90% RH (non-condensing)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
