Description
Digital Watchdog DWC-MC553WTIR 5MP IR Star-Light UHDoC Micro Dome HD CCTV Security Camera with 4mm Fixed Lens
Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The compact micro dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. This camera comes with a chrome trim ring installed plus two additional rings, solid black and solid white, packed in the box. Decorator color trim rings in blue, red or green also available and sold separately. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Key Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/2.8" image sensor

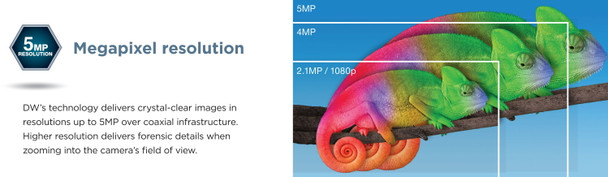

- 5MP at 20fps, 4MP at real-time 30fps
- 4.0mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 50' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
- Color trim rings available: Solid black and solid white included and decorator colors red, green or blue are sold separately
- 5 year warranty
Replacement of:
DWC-MC753WTIR
Downloads
Quick Start Guide
Digital-Watchdog-DWC-MC553WTIR-Quick-Start-Guide-A1
User Manual
Digital-Watchdog-DWC-MC553WTIR-User-Manual-A1
Specifications
IMAGE |
|
|
Image sensor
|
5MP 1/2.8" CMOS
|
|
Active pixels
|
2608 (H) x 1960 (V)
|
|
Scanning system
|
Progressive scan
|
|
Frequency
|
60Hz / 50Hz
|
|
Signal technology
|
Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
|
|
Synchronization
|
Internal
|
|
Resolution
|
2592 x 1944 (5MP)
|
|
Minimum scene illumination
|
0.16 lux (color)
|
|
0 lux (B&W)
|
|
|
S/N ratio
|
55dB
|
|
Video output
|
HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps
HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps
|
LENS |
|
|
Focal length
|
4.0mm
|
|
Lens type
|
Fixed lens
|
|
Field of view (FoV)
|
82°
|
|
IR distance
|
50ft range
|
OPERATIONAL |
|
|
Shutter mode
|
Auto
|
|
Shutter speed
|
1/30-1/30,000
|
|
Backlight
|
Yes
|
|
Star-Light (sense-up)
|
Off – x32
|
|
Wide dynamic range (WDR)
|
True WDR, off, on
|
|
Wide dynamic range (WDR) dB
|
120dB
|
|
Smart DNR™ 3D digital noise reduction
|
3D/2D DNR
|
|
White balance
|
Yes
|
|
Day / night
|
Auto, day (color), night (B/W)
|
|
Mirror / flip
|
Yes
|
|
Auto gain control
|
Max 72dB
|
|
Motion detection
|
Yes
|
|
Privacy zones
|
Yes
|
|
Sharpness
|
Yes
|
|
Gamma
|
0.45
|
|
De-fog
|
Yes
|
|
RS485 / UTP built-in
|
UTC
|
ENVIRONMENTAL |
|
|
Operating temperature
|
-4°F ~ 122°F (-20°C ~ 50°C)
|
|
Operating humidity
|
10–90% RH (non–condensing)
|
|
IP rating
|
IP66 environmental-rated dust-tight and water-resistant
|
| IK rating | IK 9-rated impact-resistant |
|
Other certifications
|
FCC, CE, ROHS
|
ELECTRICAL |
|
|
Power requirement
|
DC12V only
|
|
Power consumption
|
DC12V (LED OFF): 1.98W DC12V (LED ON): 2.62W
|
MECHANICAL |
|
|
Material
|
Aluminum vandal housing, polycarbonate micro dome
|
|
Dimensions
|
3.14" x 2.34" (80 x 59.5mm)
|
|
Weight
|
0.56 lbs (0.25kg)
|
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Mini Dome
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Product Series:
|
Digital Watchdog Star-Light Plus Series
Digital Watchdog Universal HD over COAX Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Size:
|
1/2.8"
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
