Description

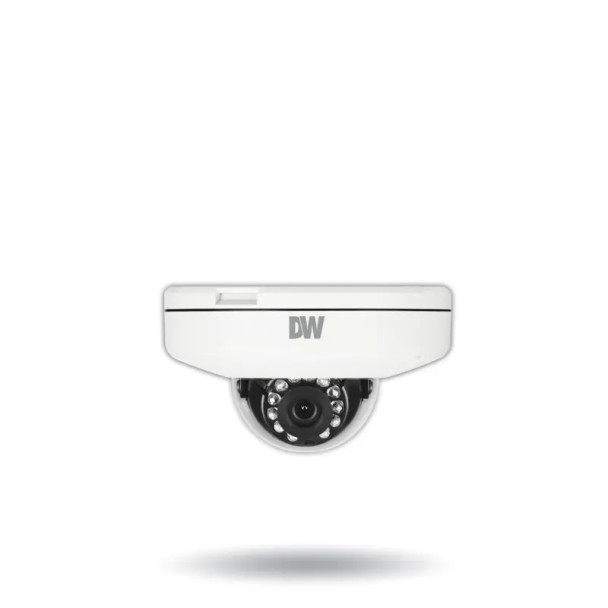

Digital Watchdog DWC-MF2Wi4TWDMP 2.1MP Night Vision Outdoor Dome IP Security Camera with DMP Integration
The DMP series of MEGApix IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any existing DMP system via the cloud. The camera comes in an IP66-rated and IK10-impact-resistant ultra low-profile vandal dome housing. This camera is uniquely programmed for integration with a DMP solution. It is not compatible with DW Spectrum IPVMS and will not be recognized by a DW Spectrum recoding license.
Key Features:
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 50' Smart IR with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 2 and DC12V
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
Quick Start Guide
Digital-Watchdog-DWC-MF2Wi4TWDMP-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F2.6
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
|
|
Dimensions:
|
125 x 74.3 mm (4.9 x 2.9 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
86
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
4 Watts
5.5 Watts
|
|
Max. FPS and Resolution:
|
10fps at 1080p
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.09 Lux
|
|
Mounting:
|
Corner Mount
Wall Mount
Pole Mount
Ceiling Mount
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
49
|
|
Night Vision Type:
|
Smart IR
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Digital Watchdog MEGApix Series
|
|
Protection Code:
|
IP66
IK10
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
