Description

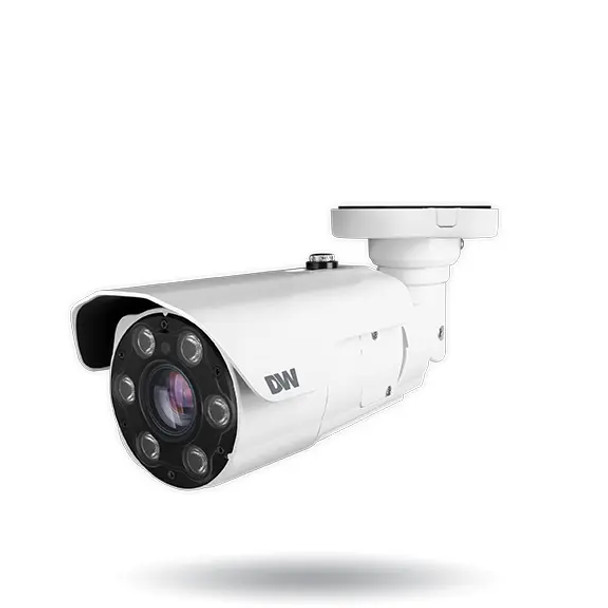

Digital Watchdog DWC-MB48WiATW 8MP 4K Night Vision Outdoor Bullet Network IP Security Camera with IVA
Key Features:
- 4K 1/2.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- Cold Start -40°F (-40°C)
- 140’ Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Intelligent Video Analysis (IVA)
Intelligent Video Analytics with extended features (IVA+)
Motion Detection
|
|
Aperture:
|
F1.4
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
Night (B/W)
Auto
|
|
Dimensions:
|
310 x 97 mm (12.2 x 3.81 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
33.1
90.3
|
|
Image Enhancements:
|
Ultra Low Light
Auto Gain Control (AGC)
|
|
Iris:
|
P-iris
|
|
LED Indicator:
|
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
10.2 Watts
16 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.09 Lux
|
|
Mounting:
|
Pole Mount
Wall Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Base-T
|
|
Night Vision Range (ft):
|
140
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
Smart DNR
|
|
Optical Zoom:
|
5x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Product Series:
|
Digital Watchdog MEGApix IVA Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
50 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
|
|
Specialized Camera Feature:
|
Extreme Weather Temperatures
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
