Description

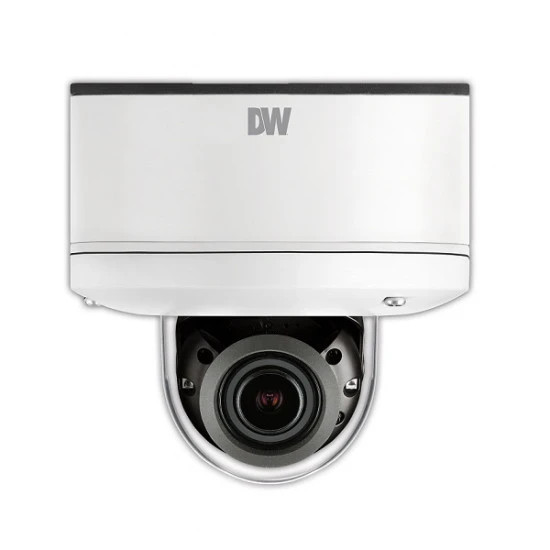

Digital Watchdog DWC-MPV45WiATW 5MP Night Vision Outdoor Snapit Dome IP Security Camera with 5x Optical Zoom
This MEGApix IVA IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus, simultaneous H.265/H.264/MJPEG codec support, Star-Light Plus color in near-total darkness technology for quality video in any lighting condition and Cold Start at -40° F/-40° C. The unique Snapit housing is easy to install, includes CleanView dome treatment and is IP68-rated. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Key Features:
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- Cold Start -40°F (-40°C)
- 100' Smart IR with intelligent camera sync
- CleanView hydrophobic dome coating repels water, dust and grease
- Snapit easy installation camera
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP68 dust-tight and waterproof
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
Compatible products
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Intelligent Video Analytics with extended features (IVA+)
Motion Detection
|
|
Aperture:
|
F1.4
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
139 x 125.4 mm (5.47 x 4.93 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
31
96
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
8.3 Watts
10.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2592 x 1944
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.08 Lux
|
|
Mounting:
|
Wall Mount
Pole Mount
Corner Mount
Ceiling Mount
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Smart IR
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Optical Zoom:
|
5x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Digital Watchdog MEGApix IVA+ Series
|
|
Protection Code:
|
IP68
IK10
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
|
|
Specialized Camera Feature:
|
Extreme Weather Temperatures
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
