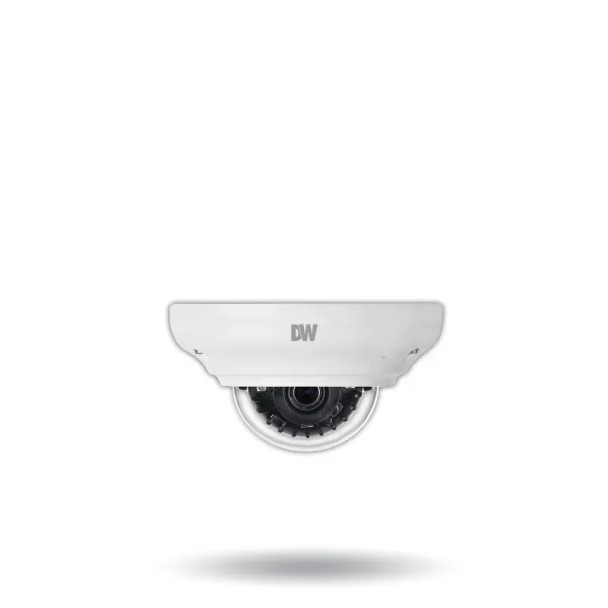

Digital Watchdog DWC-MPV75Wi28TW 5MP Night Vision Outdoor Dome IP Security Camera with 2.8mm fixed lens

Part Number: DWC-MPV75Wi28TW
Write a Review
  • Digital Watchdog DWC-MPV75Wi28TW 5MP Night Vision Outdoor Dome IP Security Camera with 2.8mm fixed lens
  • Digital Watchdog DWC-MPV75Wi28TW 5MP Night Vision Outdoor Dome IP Security Camera with 2.8mm fixed lens
$424.00

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.264, H.265, MJPEG,
  • Field of View (Horizontal) : 102.3°Field of View
  • Max. FPS and Resolution : 30fps at 2592 x 1944
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP67 IK10
  • Material : Aluminum Poly-carbonate
  • UL Listed : Yes
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"
  • Aperture : F2.0

Description

Digital Watchdog DWC-MPV75Wi28TW 5MP Night Vision Outdoor Dome IP Security Camera with 2.8mm fixed lens

This MEGApix IVA IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes 2.8, 4.0 and 6.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market. DWC-V7DECO Accessory: Set of five (5) white decorative rings for our MEGApix and Star-Light Plus cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.

Key Features:

  • 5MP 1/2.8" image sensor at real-time 30fps
  • Star-Light Plus color in near-total darkness technology
  • Intelligent Video Analytics (IVA pre-loaded models)
  • Extended Intelligent Video Analytics (IVA+ pre-loaded models)
  • Seamless integration and control of IVA rules with DW Spectrum IPVMS
  • 2.8mm fixed lens (DWC-MV75Wi28TW)
  • 4.0mm fixed lens (DWC-MV75Wi4TW)
  • 6.0mm fixed lens (DWC-MV75Wi6TW)
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 80' Smart IR with intelligent camera sync
  • Ultra low-profile vandal dome camera
  • Smart DNR 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • PoE class 3 and DC12V
  • UL listed
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Aperture:
F2.0
Built-in Analytics:
Camera Style:
Dome
Certifications:
FCC CE RoHS
Compatible Integration (API):
ONVIF
Compression:
H.264 H.265 MJPEG
Connection Type:
Wired
Day/Night:
Auto Day (Color) Night (B/W)
Dimensions:
105 x 61 mm (4.13 x 2.4 in)
Durability:
Weatherproof Vandal Resistant
Environmental:
Outdoor
Field of View (Horizontal):
102.3
Iris:
Fixed
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Material:
Aluminum Poly-carbonate
Max. FPS and Resolution:
30fps at 2592 x 1944
Minimum Illumination (B/W):
0 lux
Minimum Illumination (Color):
0.13 Lux
Mounting:
Wall Mount Pole Mount Ceiling Mount
NDAA Compliance:
NDAA Compliant
Network Interface:
1x Rj-45 10/100 Base-T
Night Vision Range (ft):
80
Noise Reduction:
3D DNR
Operating Humidity:
10% to 90% (non-condensing)
Operating Temperature:
-20 °C to 50 °C (-4 °F to 122 °F)
Power Consumption:
6 Watts 7.2 Watts
Power Supply:
12 VDC PoE (IEEE 802.3af)
Product Series:
MEGApix IVA+
Protection Code:
IP67 IK10
Resolution:
5MP (3K)
SD Card Support:
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Shutter Speed:
1/15-1/32000s
Special Technologies:
Smart IR Star-Light Plus Intelligent Video Analytics with extended features (IVA+)
Technology:
Network (IP)
UL Listed:
Warranty:
5-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
