Description

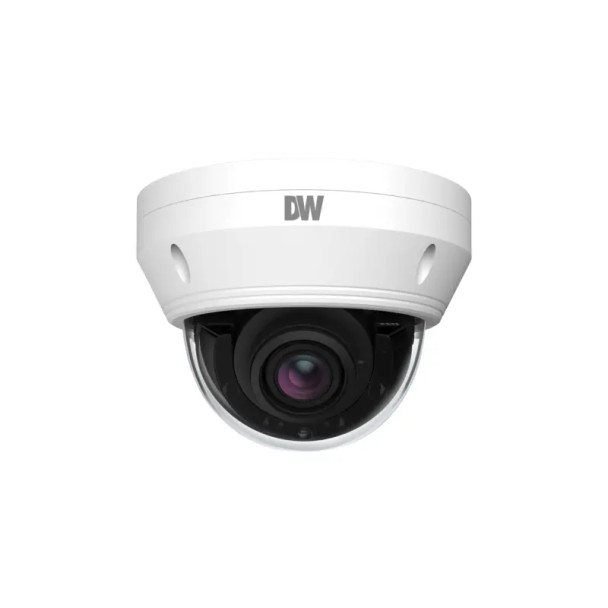

Digital Watchdog DWC-MV95WiATW 5MP Night Vision Outdoor Dome IP Security Camera with 2.8~12mm Vari-focal Lens with Remote Auto-focus
These MEGApix IP cameras are NDAA compliant and deliver crystal-clear images at 5MP resolution and real-time 30fps. The vandal dome camera features a 2.8~12mm vari-focal lens with motorized zoom in an IP67-rated, IK10 impact-resistant housing. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Key Features:
- 5MP 1/2.7" image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Two-way audio with built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
Quick Start Guide
Digital-Watchdog-DWC-MV95WiATW-Quick-Start-Guide-A1
User Manual
Digital-Watchdog-DWC-MV95WiATW-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
Line Crossing
|
|
Aperture:
|
F1.4
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711a
G.711u
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
CE
RoHS
|
|
Compatible Integration (API):
|
ONVIF Profile S
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
138 x 100 mm (5.43 x 3.93 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
30
95.1
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Iris:
|
Auto (Video Iris)
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Metal
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2592 x 1944
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.01 Lux
|
|
Mounting:
|
Wall Mount
Ceiling Mount
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Smart IR
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Optical Zoom:
|
4.3x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Digital Watchdog MEGApix Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
50 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
