Description

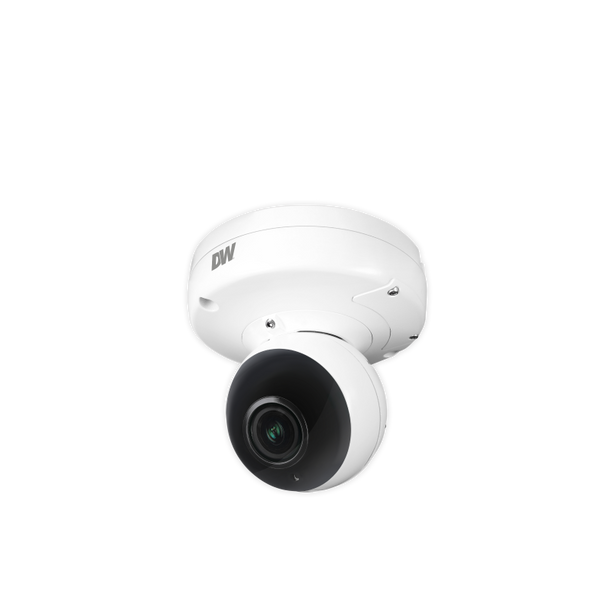

Digital Watchdog DWC-MVD8Wi28TW 8MP 4K Color in Near-Total Darkness Galaxy Eyeball Outdoor IP Security Camera with IVA, 2.8mm Fixed Lens
This MEGApix IVA Galaxy IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 4K resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera features Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.8mm fixed lens. The Galaxy weather-resistant vandal ball cameras are IP66-rated, eliminate IR reflections, offer easy angle adjustment for optimal image quality and easy access to the camera's control board from the base of the camera. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Key Features:
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR with intelligent camera sync
- Galaxy vandal ball camera
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
- 5 year warranty
Downloads
Compatible products
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Aperture:
|
F2.0
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
Eyeball
|
|
Certifications:
|
CE
FCC
RoHS
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
125 x 112 mm (4.92 x 4.4 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
105
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
9.8 Watts
13.9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.12 Lux
|
|
Mounting:
|
Wall Mount
Corner Mount
Pole Mount
Ceiling Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Night Vision Range (ft):
|
100
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
Digital Watchdog MEGApix IVA+ Series
|
|
Protection Code:
|
IP66
IK09
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
50 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Special Technologies:
|
Star-Light Plus
IVA (Intelligent Video Analytics)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer
Chrome
Firefox
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
